Description
Brand: Taiwan DELTA.
Producer: Delta Electronics Public Co., Ltd.

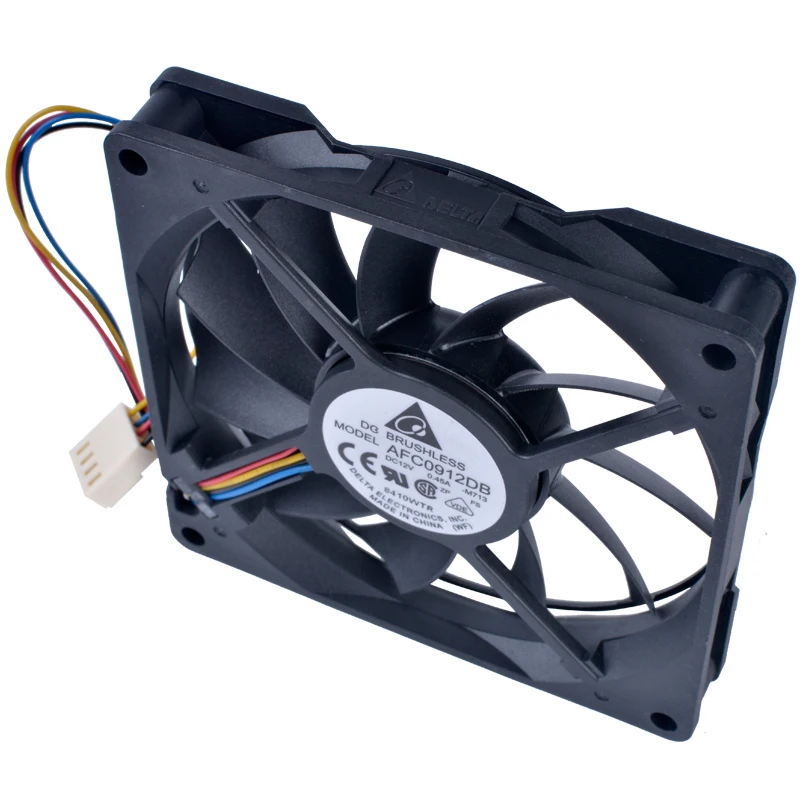

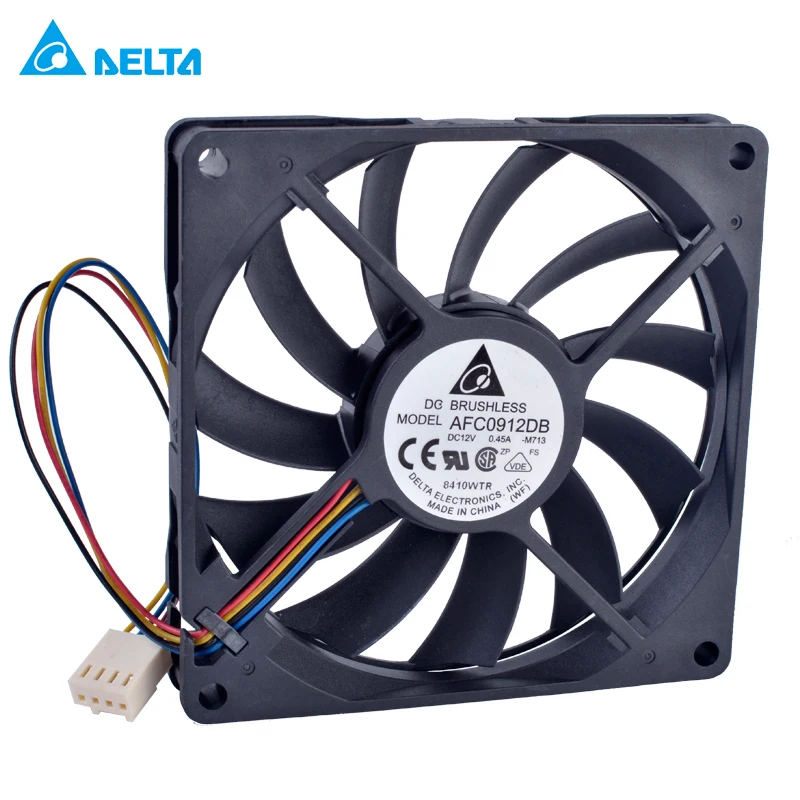

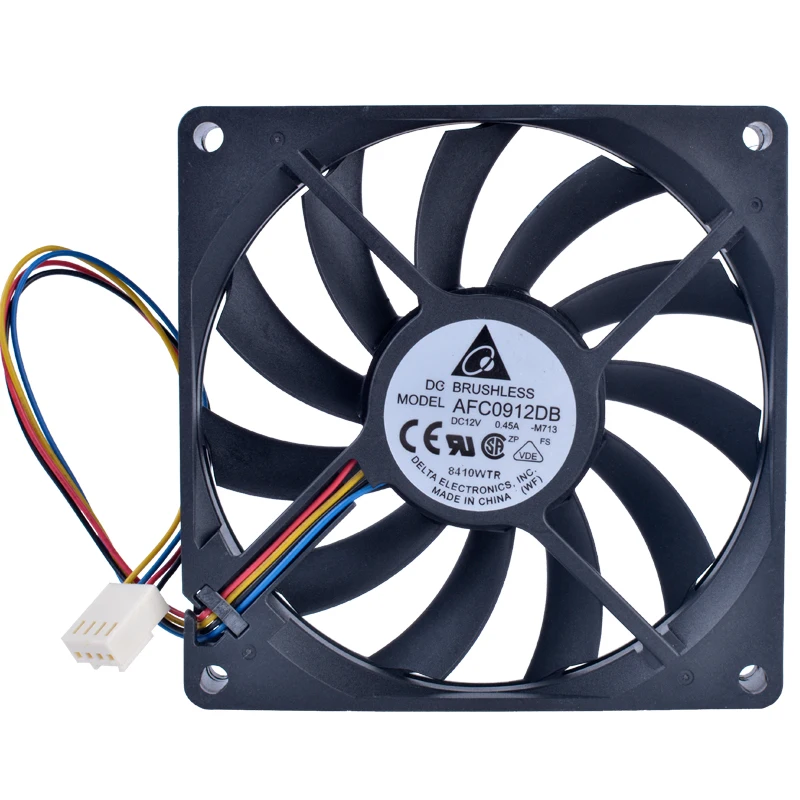

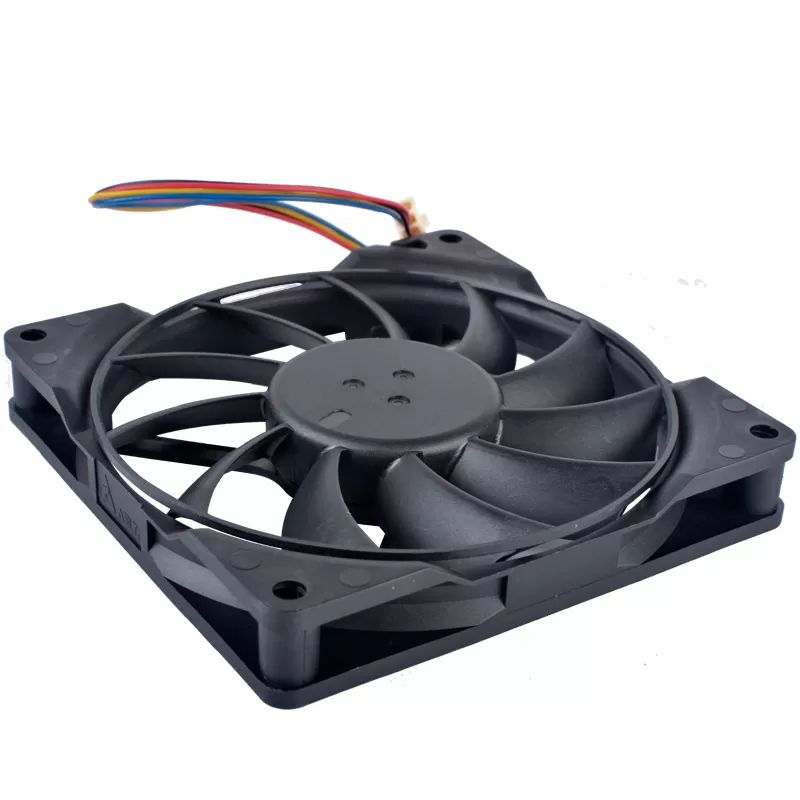

Model number: AFC0912DB
Size: 92 x 92 x 15mm.
Rated voltage: DC12V.
Voltage range: DC7.0to13.8V.
Motor power: 0.45a (nominal current) temperature sensing.
Rated revolution: 3700rpm.
Maximum air volume: 1.11 m³37.61 CFM/min
Noise indicator: 37.5 dB(A)
Temperature range: -30…+ 75 ° c.
Bearing structure: no maintenance double ball bearing.
Fan frame: injection molding, PBT+ 30% glass fiber +VO flame retardant.
Wind blade: injection molding, PBT+ 30% glass fiber +VO flame retardant.
Fan rotation: the direction of the fan blade is counterclockwise.
Power supply range: plus or minus 15% of rated power supply.
Insulation resistance: greater than 500 megohm.
Working life: 100, 000 hours when the ambient temperature is 25.
