Description

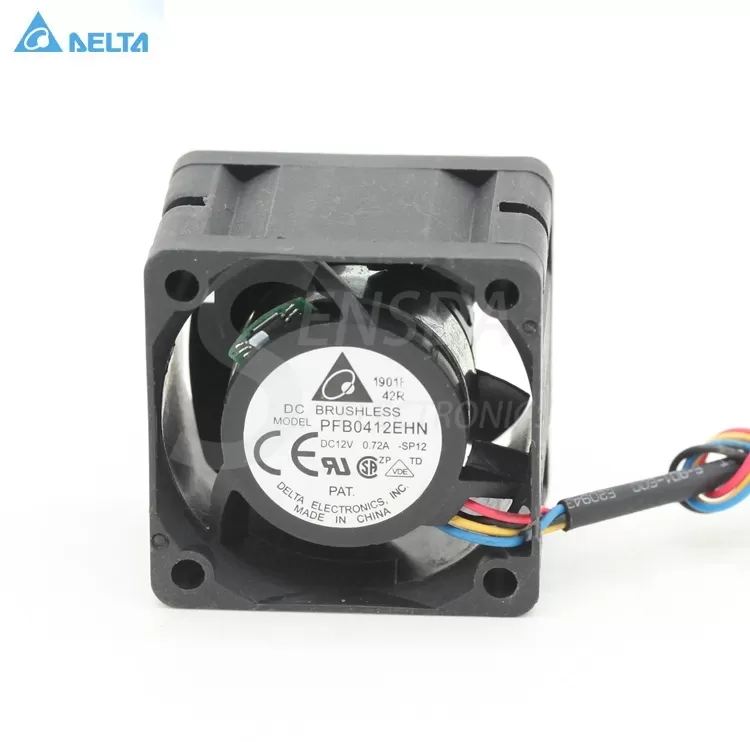

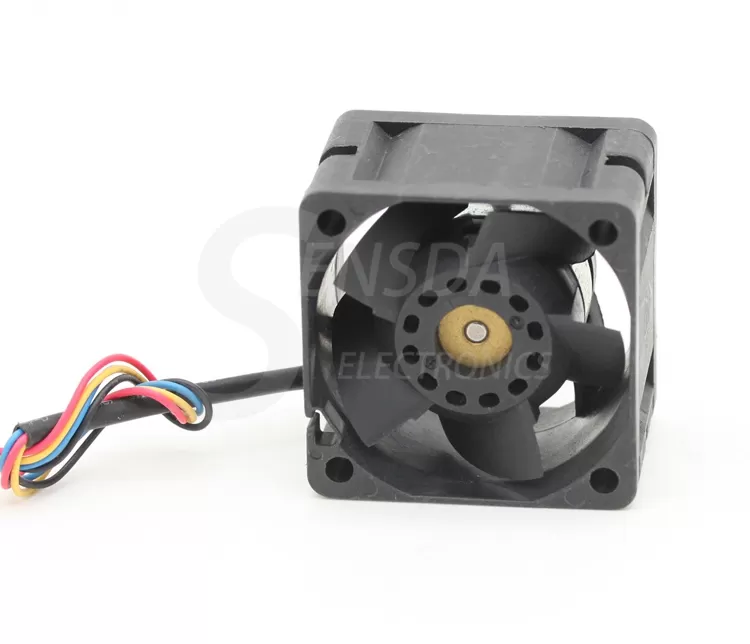

[Fan Model]: PFB0412EHN
Dimensions: 40 × 40 × 28mm
[Rated voltage: DC12V
[Voltage Range]: DC7.0V-13.6V
[Input Power]: 0.72 A
[Rated speed: 9800 r.p.m. for
Temperature range: -10 .. 70 ° C
[Life expectancy: L10 expected life of 50,000 hours at 25 ° C when
[Bearings]: maintenance-free double ball bearing
[Rotation]: wind discharged from the stent, the face of the rotor counterclockwise rotation
[Wiring]: + red – black signal: blue (blue line speed, non-alarm line, it’s worth noting.)
[Maximum air flow: 45CFM
[Motor protection: overload protection, wrong-level protection and stall locks flow protection
Minimum pressure]: 120 pA
[Noise indicators]: 44 dB (A)
[Material Material: Glass fiber reinforced plastic, PBT housing, PA leaves
[Function Description]: electronically commutated external rotor DC fans, for the complete electronic parts
