Description

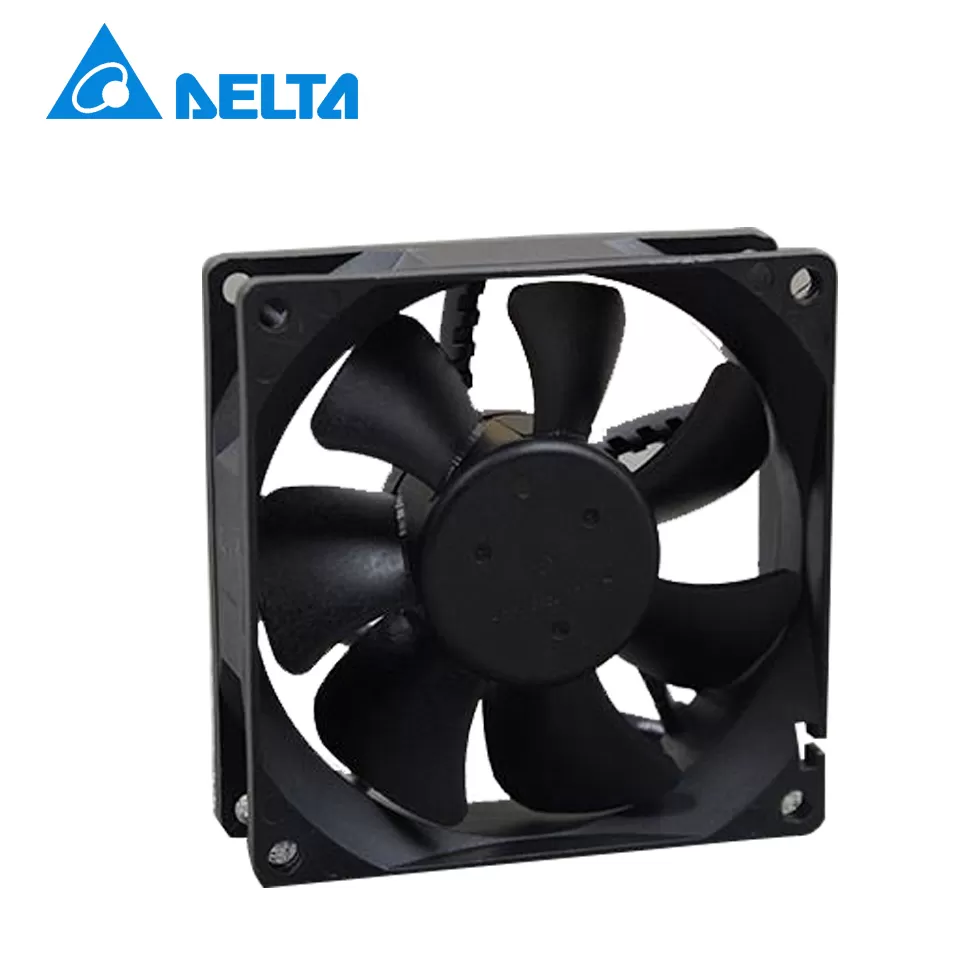

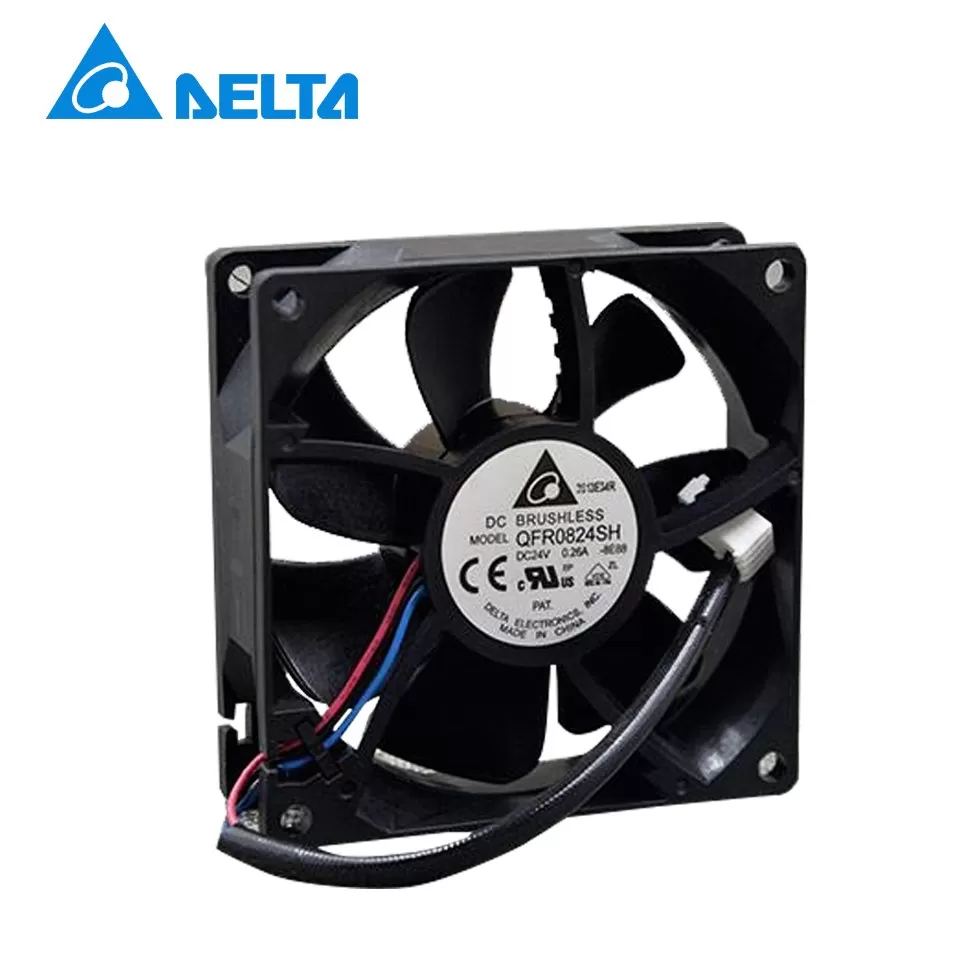

Manufacturer Part Number: QFR0824SH
Description: 80X80X25MM 24VDC W / SPD SEN TACH
Series: QFR
Voltage – Rated: 24VDC
Size / Size: Square – 80mm long x 80mm high x 25.4mm wide
Airflow: 54.6 CFM (1.54m? / Min)
Static pressure: 0.331 inch water column (82.4 Pa)
Bearing Type: Ball
Fan type: tube axis type
Features: Speed sensor (tachometer)
Noise: 41.2 dB (A)
Power (W): 4.08W
RPM: 4300 RPM
Termination: 3 leads
Weight: 0.194 pounds (88g)
Operating temperature: 14 ~ 158 ° F (-10° C ~ 70 ° C)
