Description

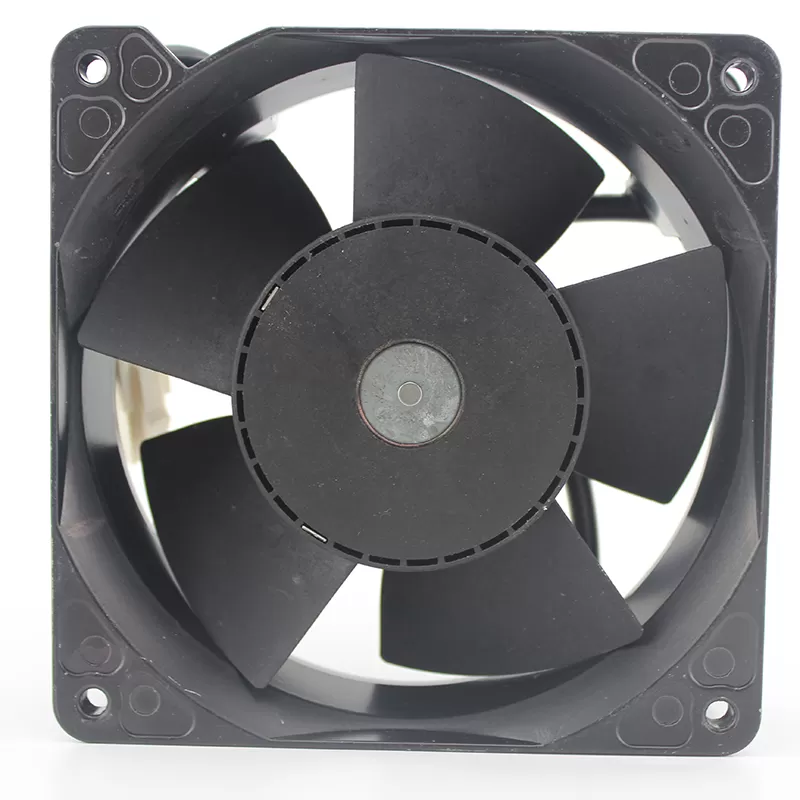

Ebmpapst 4114N/2H4 24V 30W Axial cooling Fan
Air Flow : 207 CFM (5862 L/Min.)
Bearing Type : Ball
Configuration : Square
Current Rating : 1.1 A
Dimensions : 4.69 x 4.69 x 1.5 In. (119 x 119 x 38 mm)
Fan Type : DC
Material : Metal
Noise Level : 66 dBA
Power Rating : 26 W
Primary Type : Fans
Series : 4100 N Series
Size : 4.69 x 1.5 (119 x 38) In. (mm)
Size, Approximate : 4.7 x 4.7 In. (119 x 119 mm)
Speed : 6800 RPM
Static Pressure : 1.55 In. H2O (385 Pa)
Temperature, Operating, Maximum : 65 C
Temperature, Operating, Minimum : -20 C
Termination : Wire Leads
Thickness, Approximate : 1.5 In. (38 mm)
Type : Square
Voltage Rating : 24 VDC
Weight : 390 g
