Description
brand：Ebmpapst
Model Number：8314
Item Category: Fan
Voltage：24V
Type:Fan

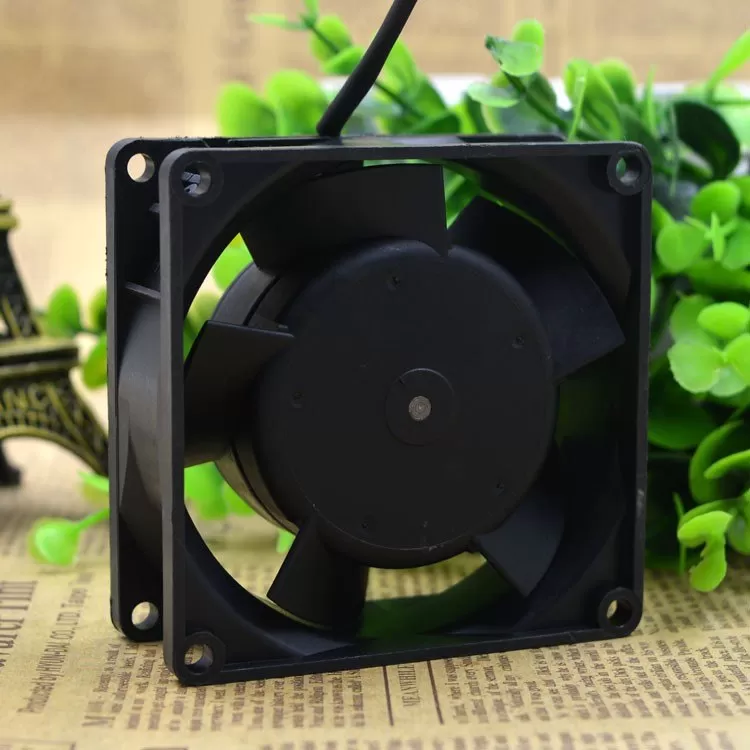

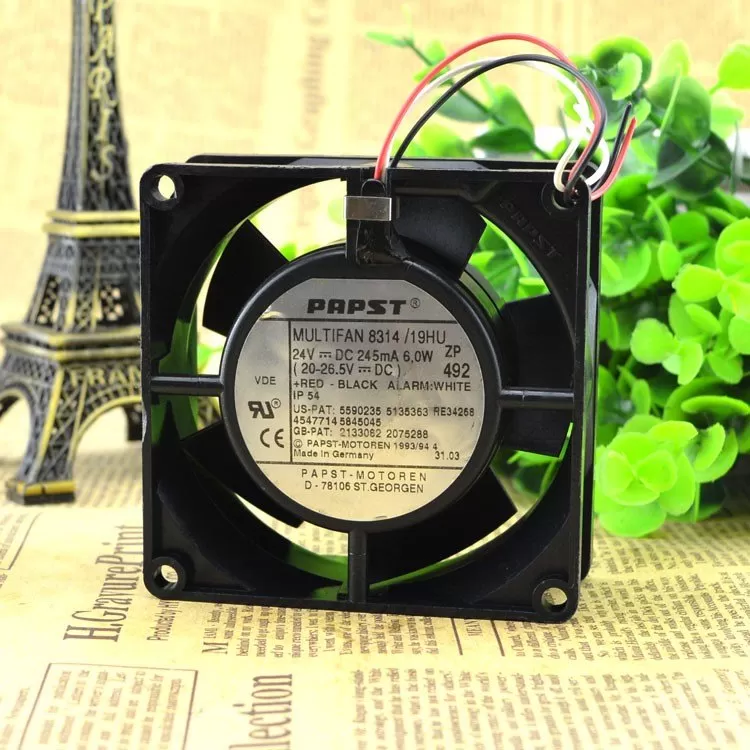

EBM PAPST 8314
The 8314 is a 24VDC Axial Fan with ball bearing and speed signal, Go/No-go alarm, alarm with limit speed, external temperature sensor, internal temperature sensor, PWM control input, analogue control input. Fibreglass-reinforced plastic (PA) impeller and fibreglass-reinforced plastic (PBT) housing, protection against fog protection against moisture. Fully integrated electronic commutation. Motor protected against reverse polarity and locking. Locked-rotor with blocking and overload protection. Wire leaded power connection. Axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.
- Exhaust over struts direction of air flow
- Clockwise direction of rotation seen on rotor
- 22AWG Single-wire connection
- IP54/IP68 Protection rating
- Protection against moisture
- Product Range 8300 Series
- Supply Voltage 24VDC
- Fan Frame Size 80mm
- External Depth 32mm
- Flow Rate – Imperial 31.8cu.ft/min
- Flow Rate – Metric 54m³/h
- Noise Rating 36dBA
- Bearing Type Ball
- Power Connection Type Wire Leaded
- Power Rating 2.5 W
- SVHC No SVHC (17-Dec-2015)
