Description
[Factory Brand ] :Meia NMB

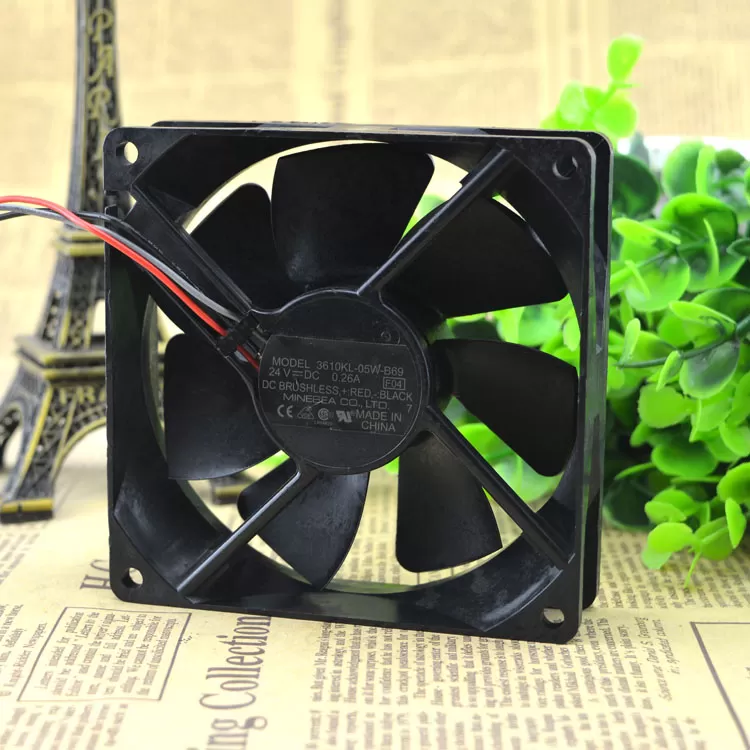

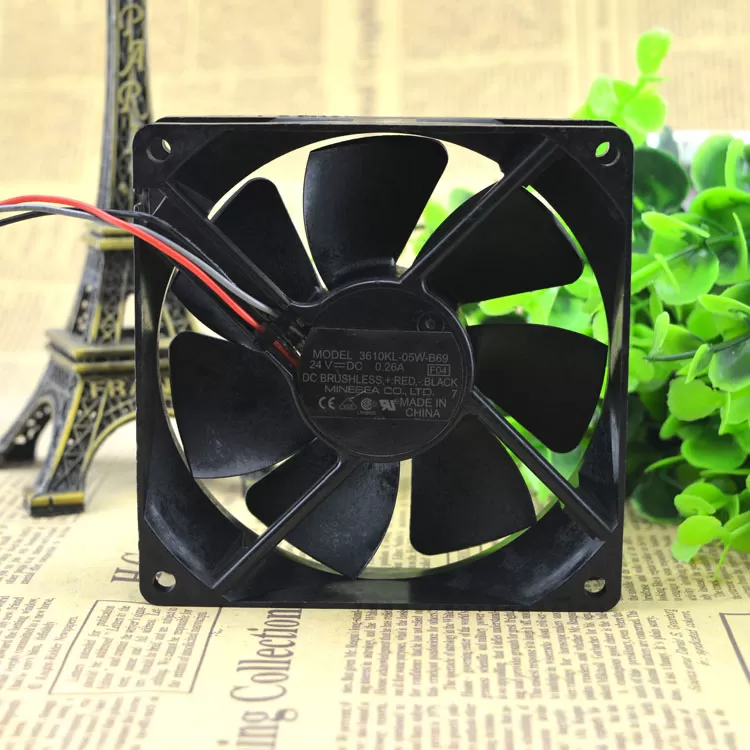

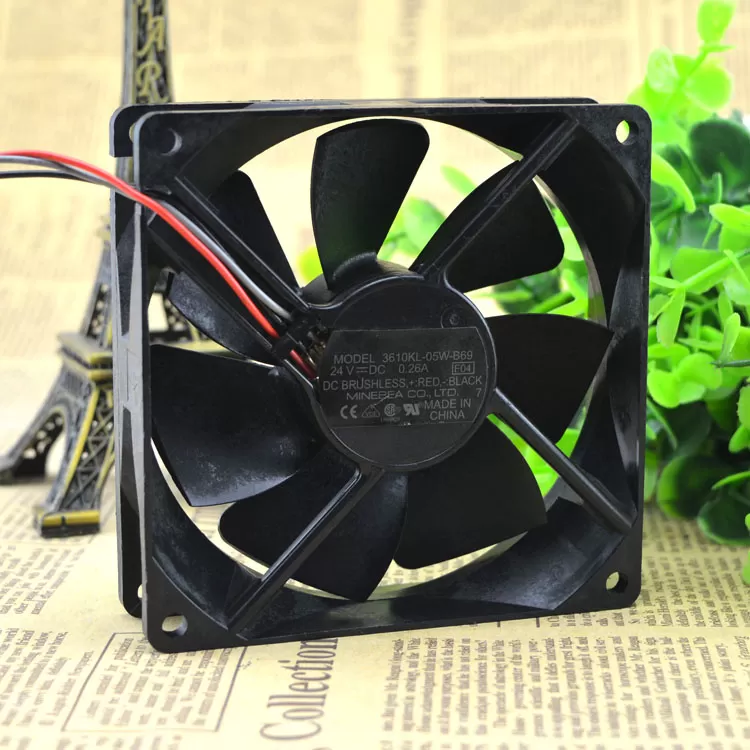

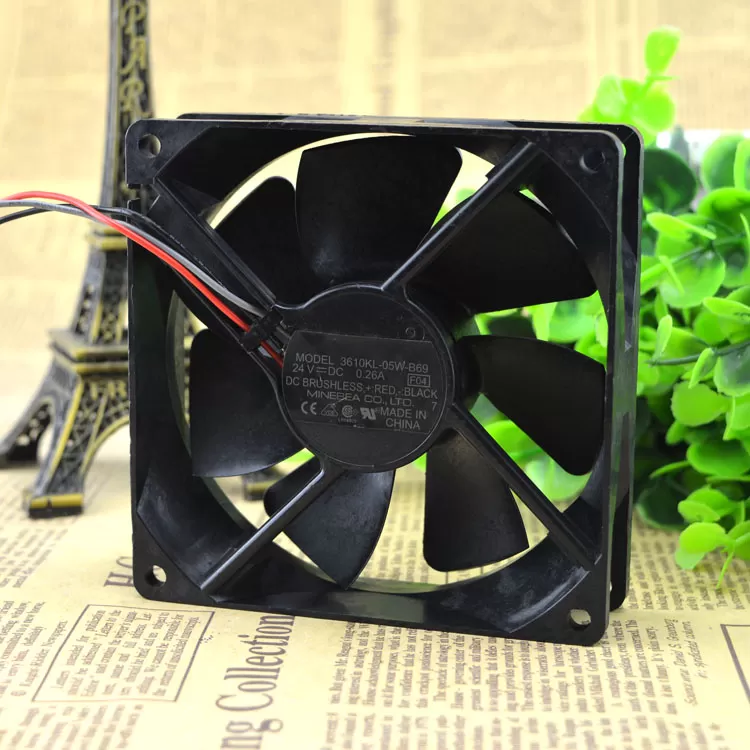

[ Product model ] : 3610KL-05W-B60
[ Appearance size ] : 92×92×25mm
[rated voltage ] : DC24V
[Voltage range] : DC10.0V-25.0V
[Input Power] : 0.26A (nominal current)
[Rated speed] : 3600 r.p.m
[Maximum air volume ] : 61.8 CFM
[Minimum wind pressure] : 0 .. 57.2 Pa
[Noise Indicator] : 44.5 dB(A)
[Temperature range] : -10 .. 70 °C
[ Life expectancy ] : L10 life expectancy of 50,000 hours at 25 °C
[ Bearing Structure ] : Maintenance-free double ball bearing
[Rotation direction] : The wind is discharged from the bracket and the rotor is rotated counterclockwise
[ Wiring method ] : Red – Black
[Motor protection] : Blocking lock flow protection, zero current when the blade is stuck
[Materials] : Glass fiber reinforced plastic, PBT shell, PA blade
[Function description] : Electronic exchange for external rotor DC fan, complete electronic reversing parts
Service life: 8.000 hours (25 ° C, 45-85% relative humidity)
Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Wind blade: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan rotation: counterclockwise from the direction of the blade;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 degrees Celsius to +70 degrees Celsius;
Bearing: high precision ball bearing;
Power range: plus or minus 15% of the rated power supply;
Insulation resistance: greater than 500 megohms;
Withstand voltage: sink current 0.5mA 500V / 1 minute;
Working life: 80000 hours when the ambient temperature is 25 degrees
