Description

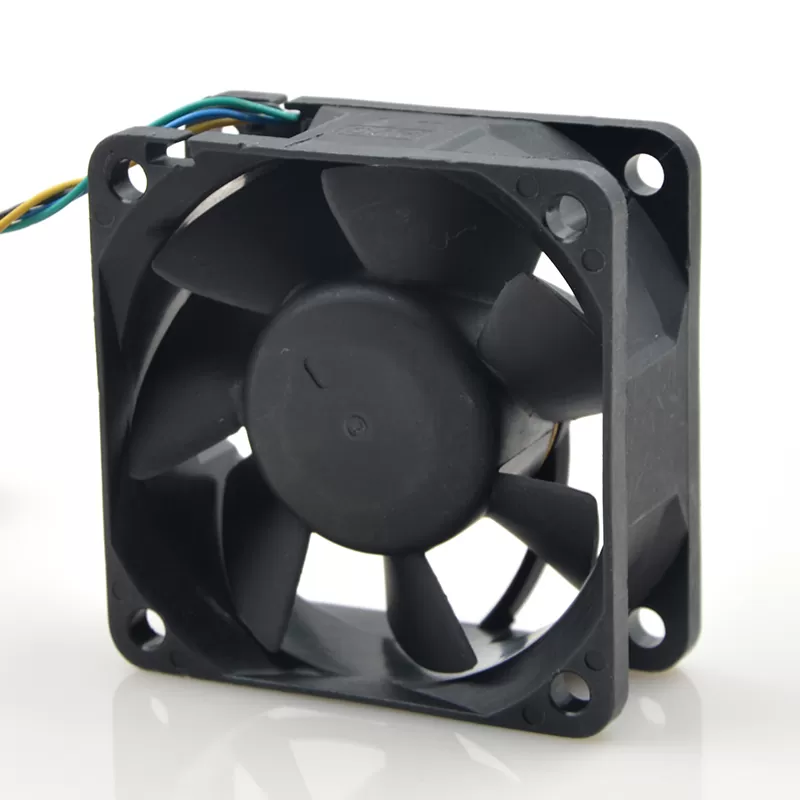

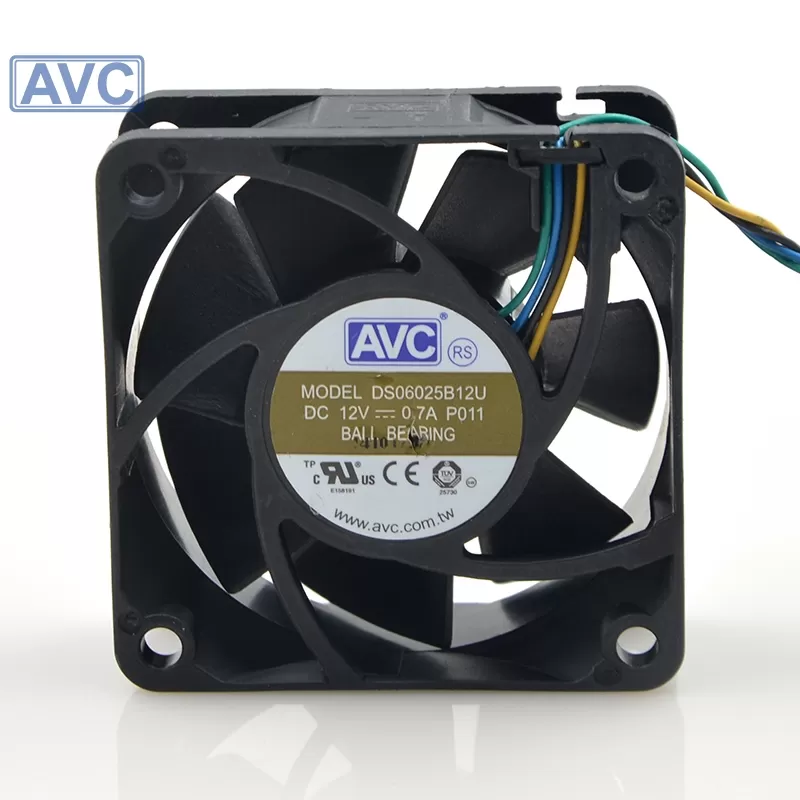

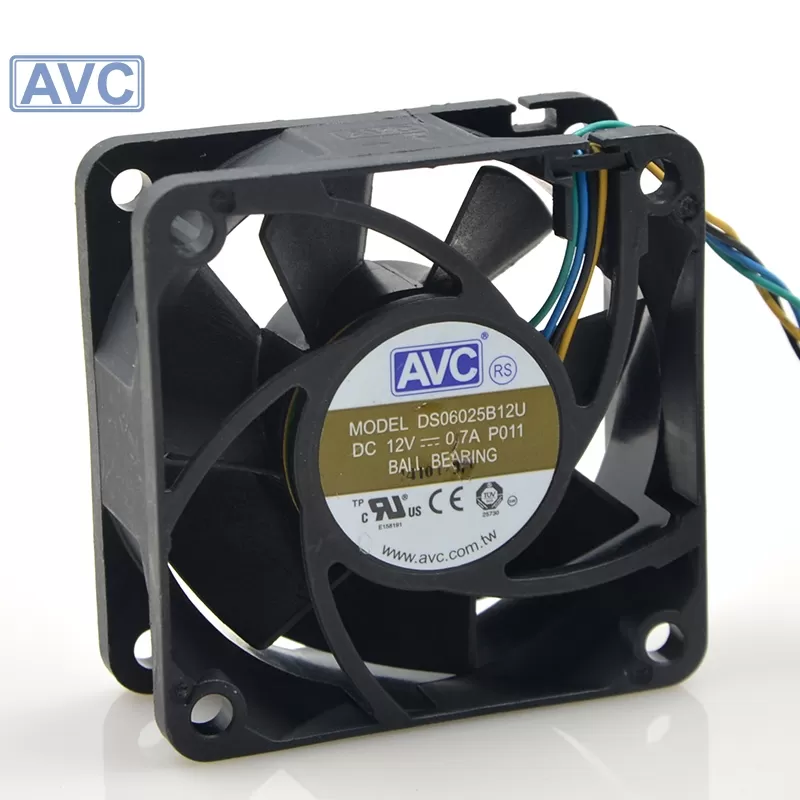

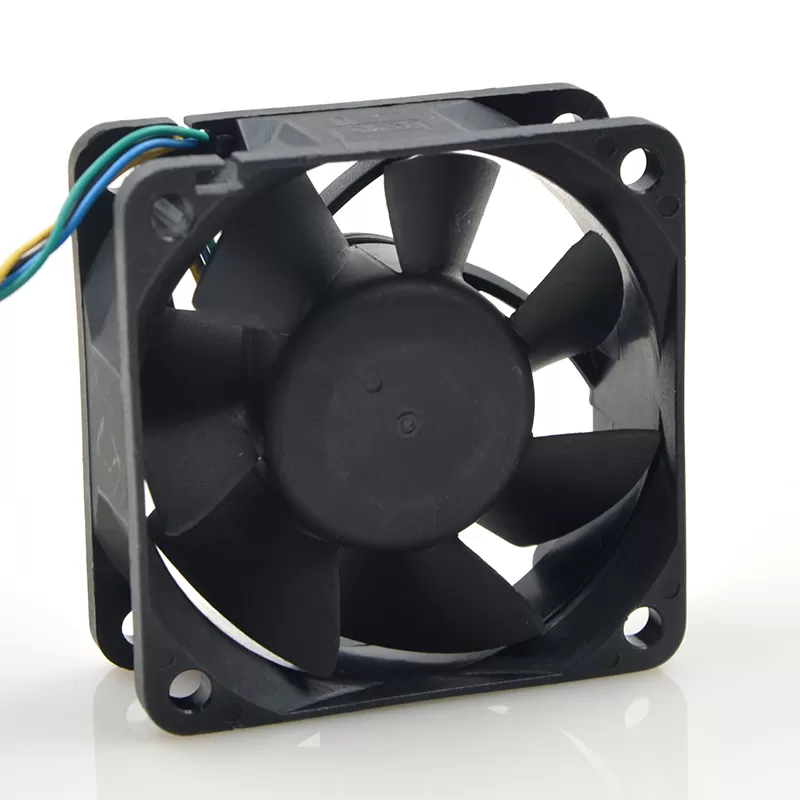

Model: DS06025B12U
Lead: 4P line (support PWM speed control)
Size: 60*60*25mm
Voltage: 12V DC
Voltage range: 5.0-13.8V
Current: 0.70A
Power: 8.4W
Speed: 5200 RPM
Air volume: 25.2 CFM
Wind pressure: 0.25 H2O IN
Noise: 38 d-BA
Scope of application: Intel 775 architecture CPU radiator, chassis. The fan with PWM temperature control function, normal speed at room temperature is very low, when the chassis or CPU ambient temperature will gradually accelerate, both play a role in the heat, and will not produce too much noise.
Fan frame: injection molding, PBT + 30% glass fiber + VO flame retardant
Wind blade: injection molding, PBT + 30% glass fiber + VO flame retardant
Fan rotation: from the direction of the fan blade to run counter clockwise
Temperature: – 20 degrees Celsius to 70 degrees Celsius storage temperature: – 40 degrees Celsius to 80 degrees Celsius
Power range: plus or minus 15% rated power
resistance: greater than 500 MB
Working life: 100000 degrees when the ambient temperature is 25 hours
\ \
