Description

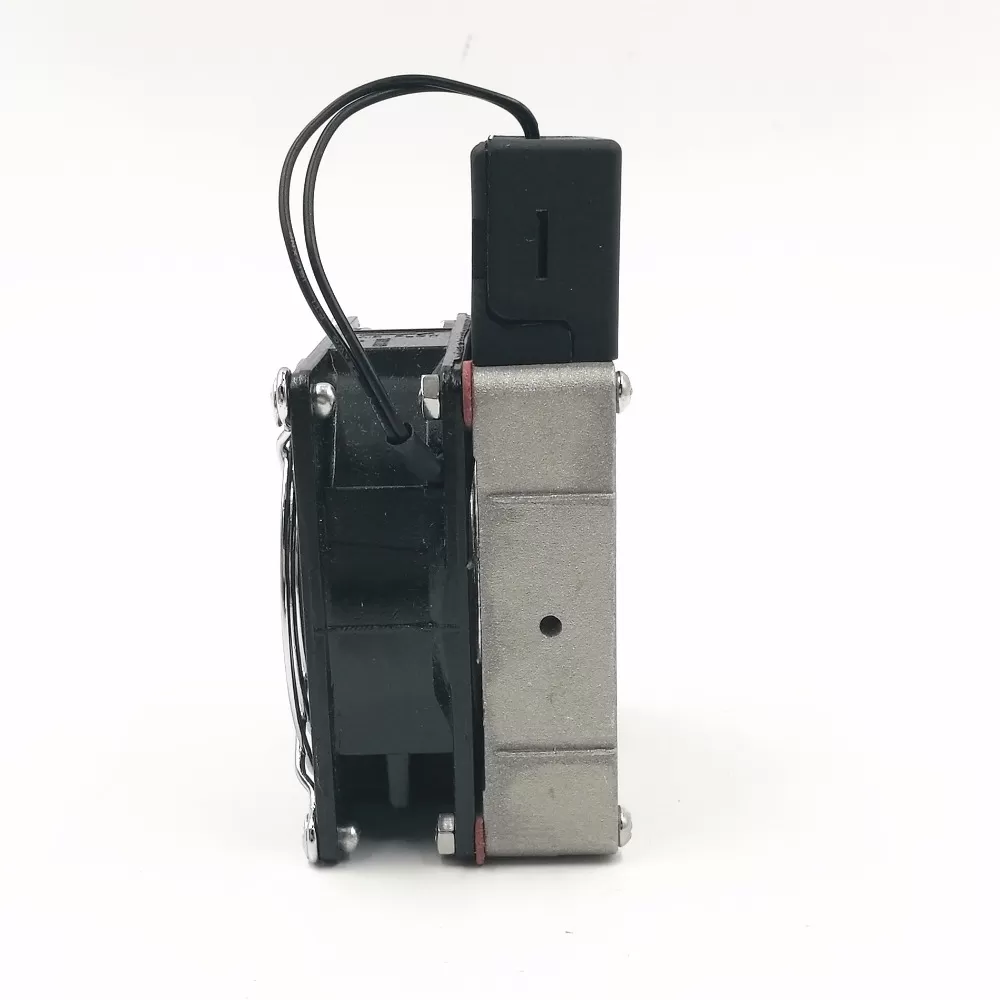

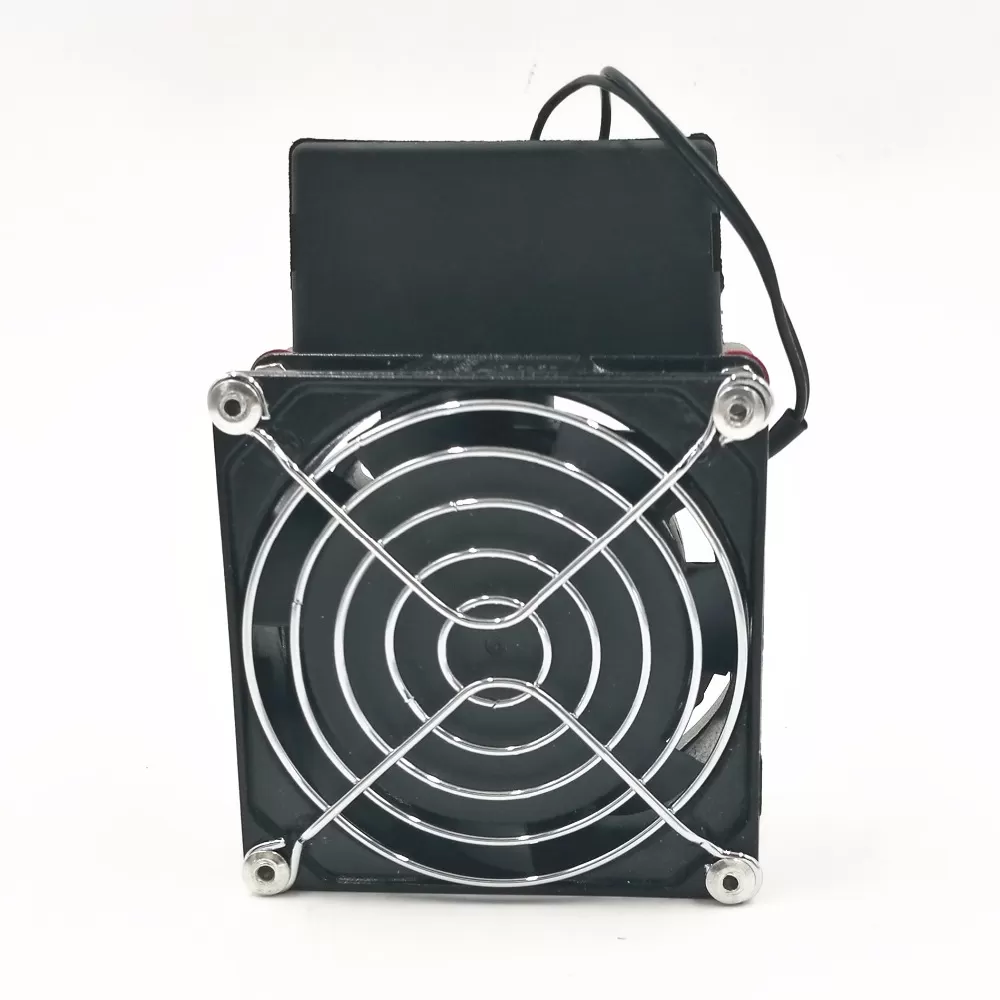

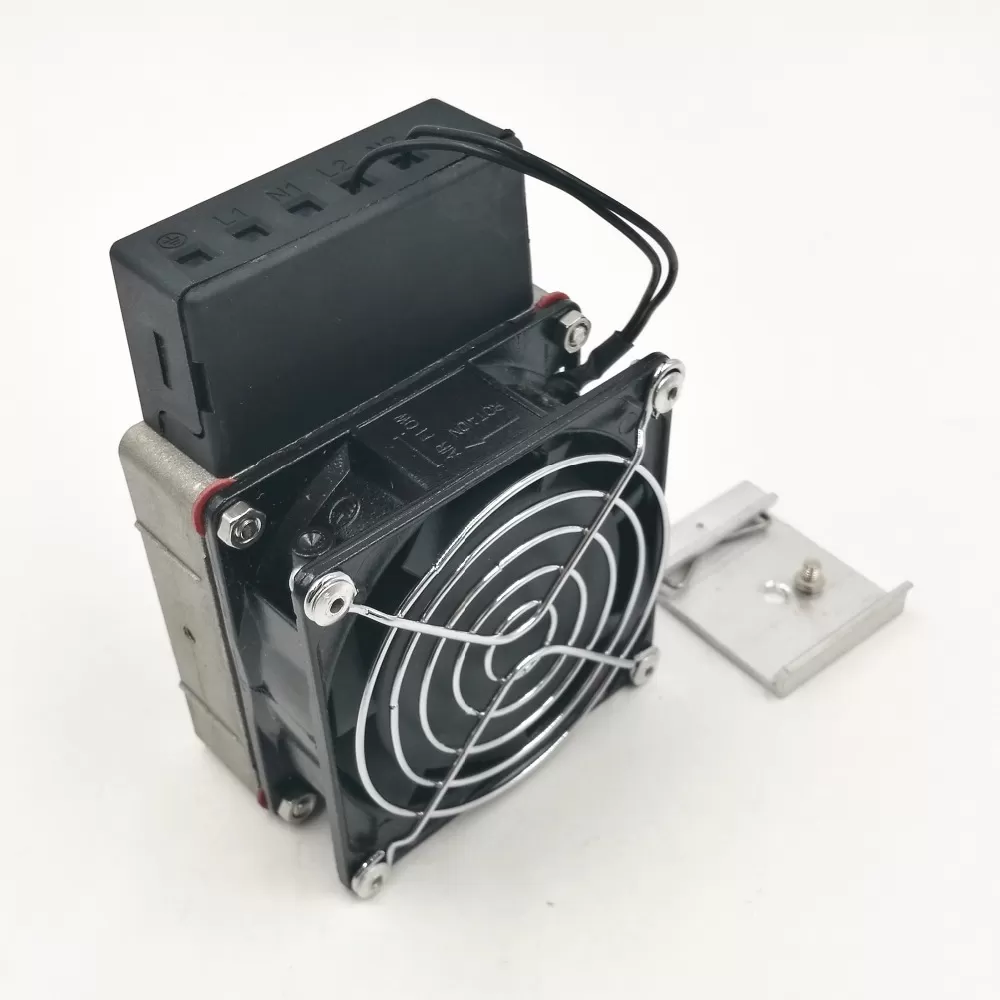

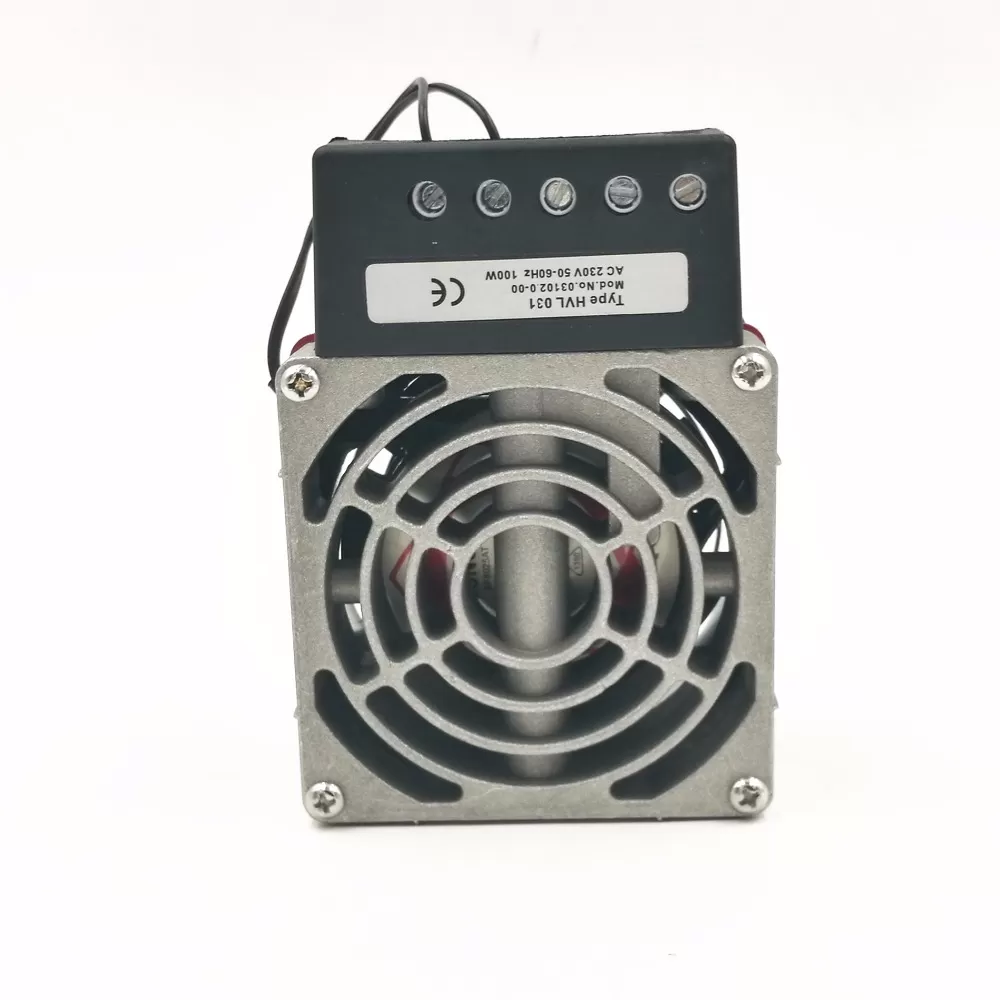

HVL031 heater 100W 150W 200W 300W 400w
Have the CE.ROSH
Compact
Flat design
High air through-flow
Temperature safety cut-out
Clip fixing
The compact high-performance fan heater prevents formation of
condensation in control or switch systems and provides an evenly
distributed interior air temperature in enclosures. This fan heater
is available with fan (HVL 031) as well as without fan (HV031).
Important : Heater may only be operated together with fan.
Danger of overheating!
Heater with fan
Heating element high performance cartridge
Temperature safety cut-out to protect against overheating in case of fan failure
Heater body die-cast aluminium (glass bead blasted)
Connection 3-pole screw connector 2.5mm2,clamping torque 0.8Nm max.
Connection casing plastic according to UL94 V-0, black

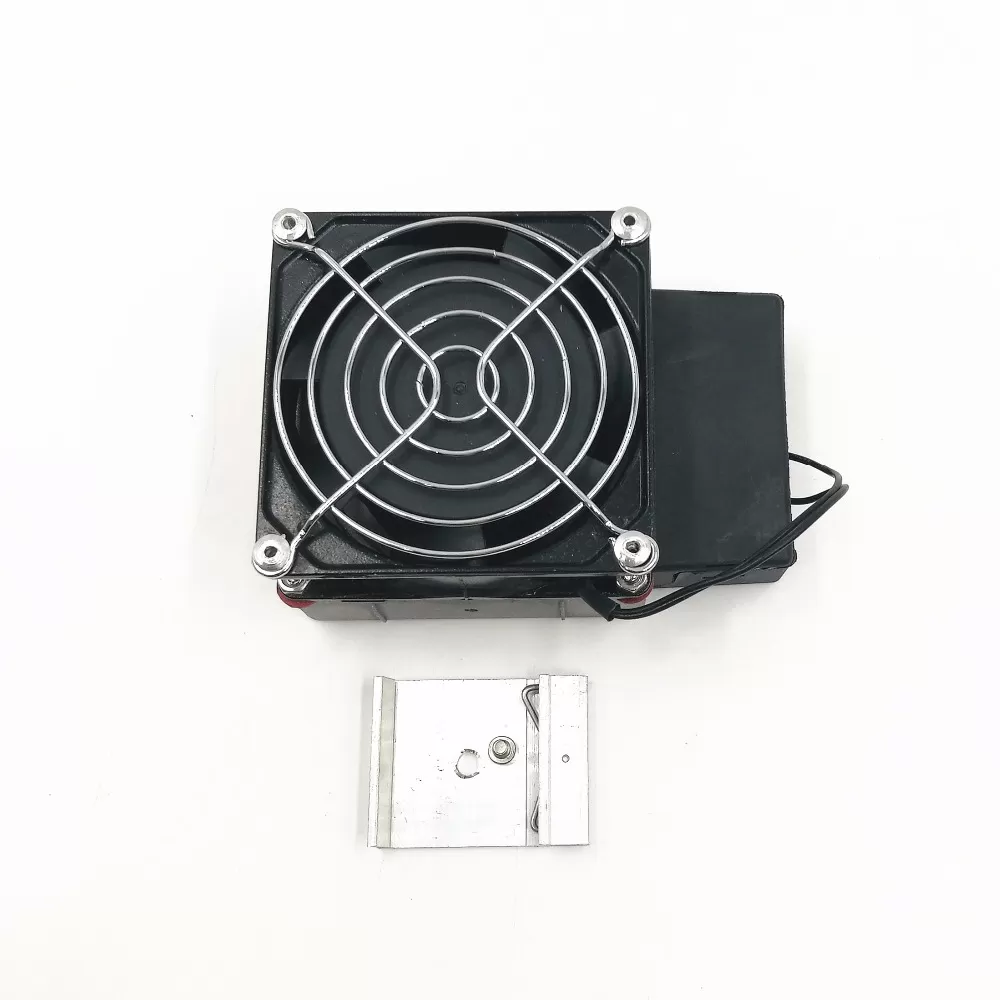

Mounting clip for 35mm DIN rail, EN 50022
Fitting position horizontal
Operating / Storage temperature -45 to +70°C (-49 to +158°F)
Protection type / Protection calss IP20 / I (earthed)
Connection (axial fan) 2-pole screw connector 2.5mm2(L2/N2)
HVL 031 only:
Axial fan, ball bearing airflow see table
service life 50,000h at 25°C (77°F)
