NEW EBM-Papst 48VDC Tubeaxial 135mm x 38mm 48 Volt Fan 5118N

$8.99

4 in stock

SKU: 391750743508 Category: Tags: , Brand:

Description

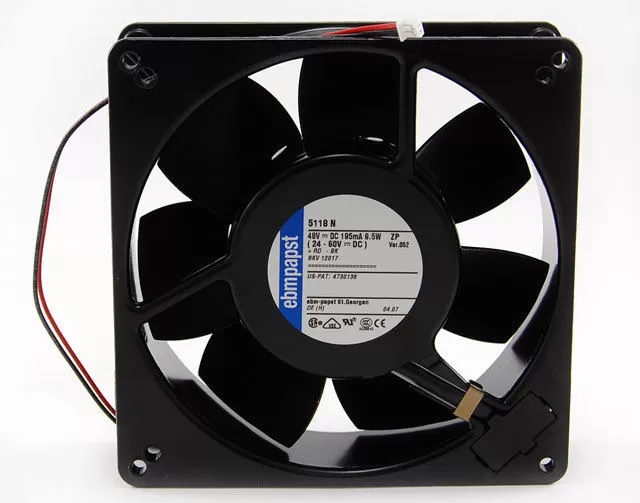

This is an EBM-Papst DC 48V tubeaxial 135 x 38mm fan. Its part part number is 5118N. This item is new and has never been used. It was originally bulk packaged and we have repackaged it for individual sale. It comes as pictured and does not include any additional parts or accessories.



Specifications:

  • Type: 5118 N
  • Dimensions: 135 x 135 x 38 mm
  • Material of impeller: Sheet steel, coated in black
  • Housing material: Die-cast aluminium
  • Bearing: Ball bearings
  • Nominal voltage: 48VDC
  • Nominal voltage range: 24 .. 60VDC
  • Power input: 9.5W
  • Min. ambient temperature: -25°C
  • Max. ambient temperature: 72°C
  • Air flow: 260 m3/h
  • Sound power level: 6.1B
  • Sound pressure level: 48dB(A)

p>Specifications:

  • Manufacturer: EBM-Papst Industries Inc
  • Part Number: 5118N
  • Category: Fans, Thermal Management
  • Voltage – Rated: 48VDC
  • Power (Watts): 9.50W
  • Bearing Type: Ball
  • Size / Dimension: Square – 135mm L x 135mm H x 38mm W
  • Air Flow: 147.0 CFM (4.16m³/min)
  • Termination: 2 Wire Leads
  • Fan Type: Tubeaxial
  • Noise: 48 dB(A)
  • RPM: 2900 RPM
  • Voltage Range: 24 ~ 60VDC
  • Operating Temperature: -13 ~ 162°F (-25 ~ 72°C)
  • Life Expectancy: 80000 hrs @ 40°C
  • Lead Free Status: Lead Free
  • RoHS Status: RoHS Compliant

Additional information

Bearing Type

Ball

Type

Cooling Fan

Brand

EBM-Papst Industries

MPN

5118N

UPC

Does Not Apply

Fan Diameter

135 mm
