New FP20060EX-S1-B 20CM 200x200x60 MM 20060 AC 220V Double Ball Bearing Case Industrial Axial Fan

Description

Model: MODEL FP20060EX-S1-B

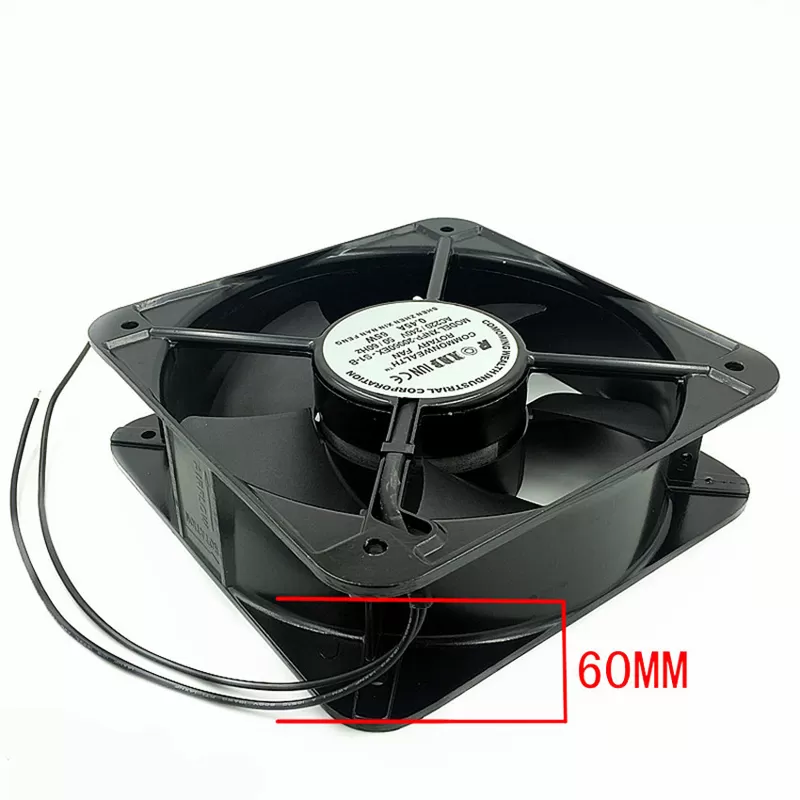

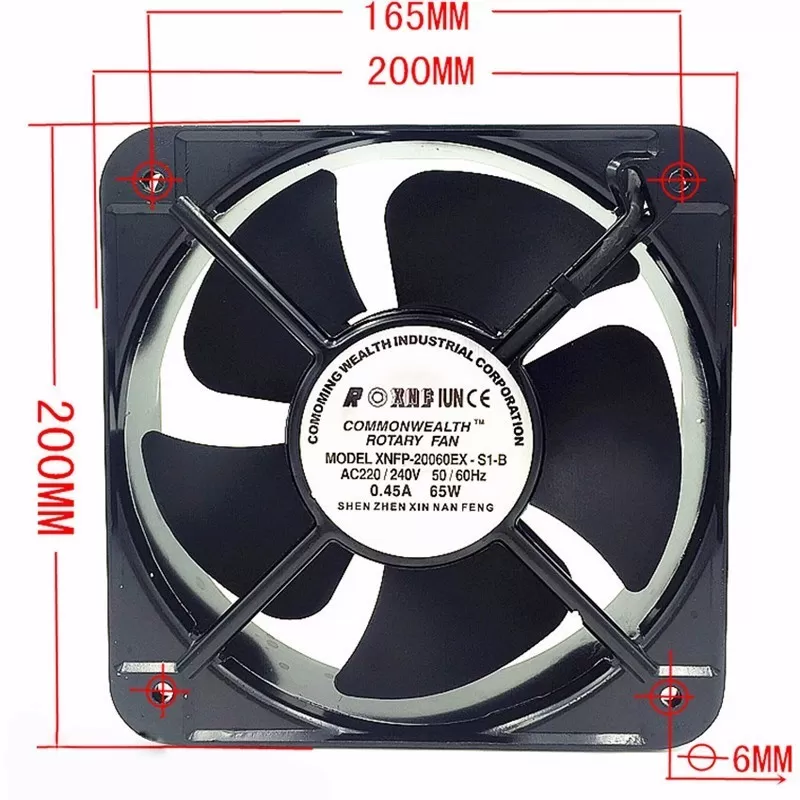

Size: 200*200*60mm

aperture: 165*165mm.

Model number: FP – 20060 ex – S1 – B

Bearing structure :B: BALL (BALL bearing)

Voltage :220 ~ 240V AC.

Frequency ratio: 50/60 (Hz)

Work rate: 65 (W)

Transfer speed: 2600 (R/min)

The wind quantity: 12.00 (M3 / min)

Noise sound: 70dBA

Wind blade: injection molding,PBT+30% glass line +VO flame retardant;

Shaft bearing: high precision and long life low noise imported ball bearing;

Extreme edge: the enameled wire is insulated with class B and has a temperature of 120c.

Insulation resistance :500 megaohm or above;

Voltage resistance: leakage current 0.5mA. Resistance to voltage 1500V/1 minute;

Operating voltage :220V (voltage range :185V ~ 245V)

Using ambient temperature :-20 ~ 75 ℃

Life: 60000 hours
