Description

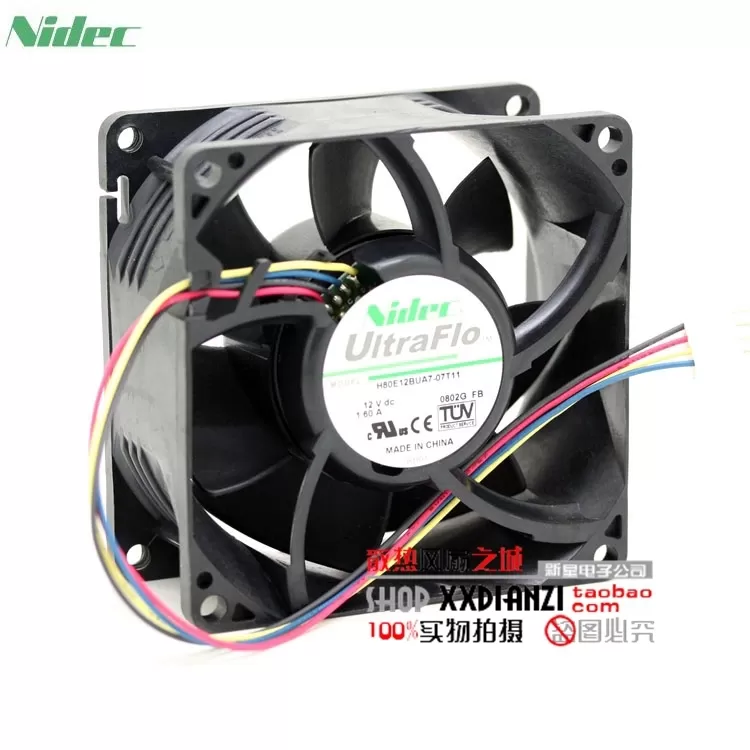

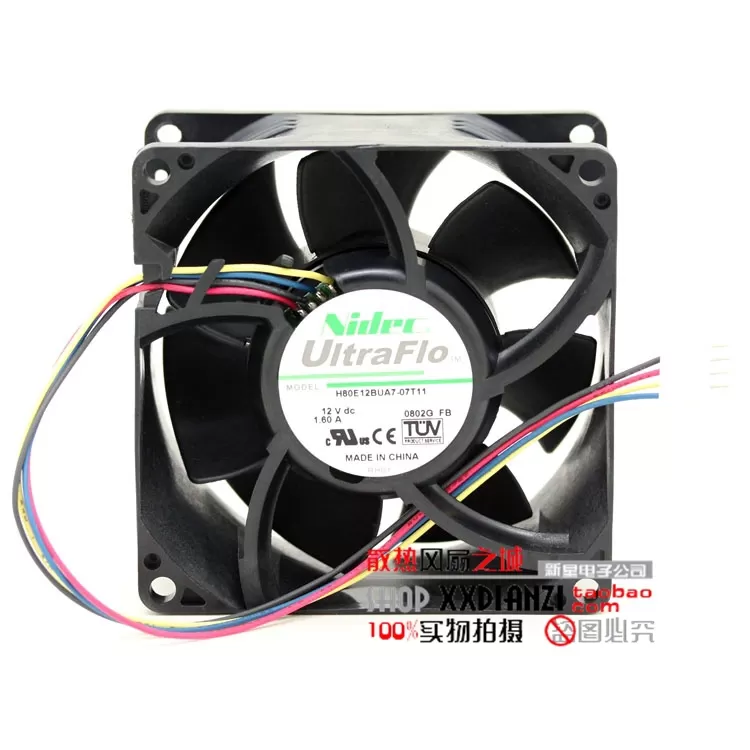

Dimensions: 80 * 80 * 38mm
Rated voltage: 12V
Operating voltage: 10.2-13.8V
Rated current: 1.60A
Input power: 20.76W
Speed: 7800RPM ± 5% support PWM Intelligent Speed
Plug: 4P standard motherboard interface cable length 20 cm
Fan frame: plastic injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Blade: plastic injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan rotation: counterclockwise as viewed from the fan;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 degrees Celsius to +70 degrees Celsius;
Bearings: high-precision double ball bearing;
Power range: plus or minus 15% of rated power;
Insulation resistance: more than 500 megohms;
Withstanding voltage: Meeting the leakage current 0.5mA 500V / 1 min;
Working life: the ambient temperature θ25 of 80,000 hours.
