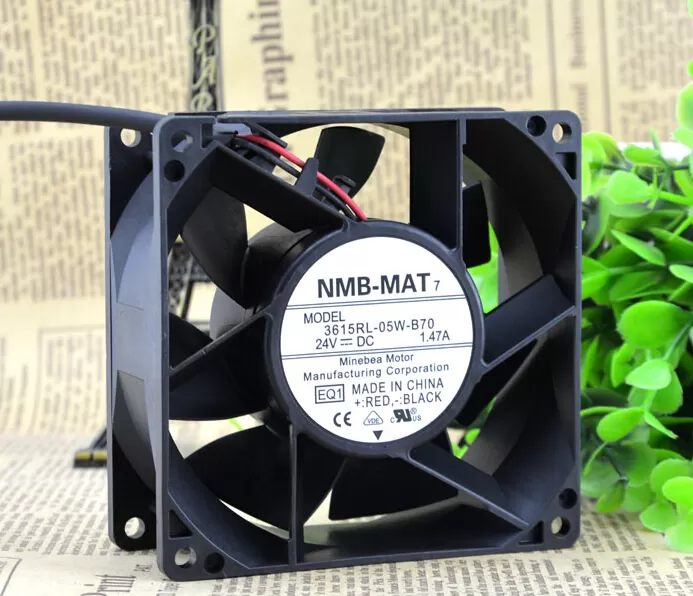

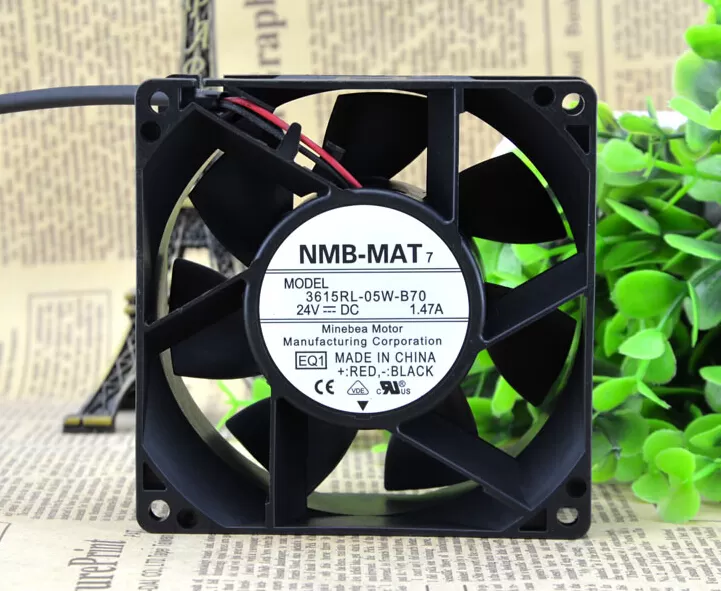

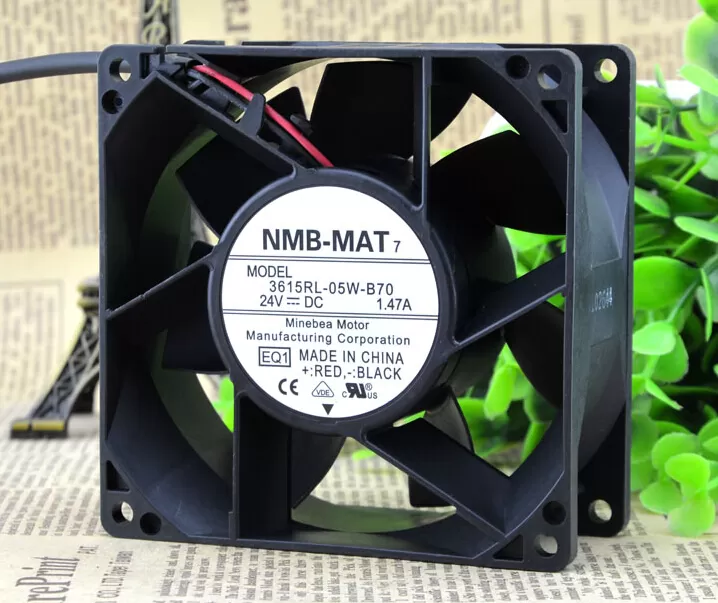

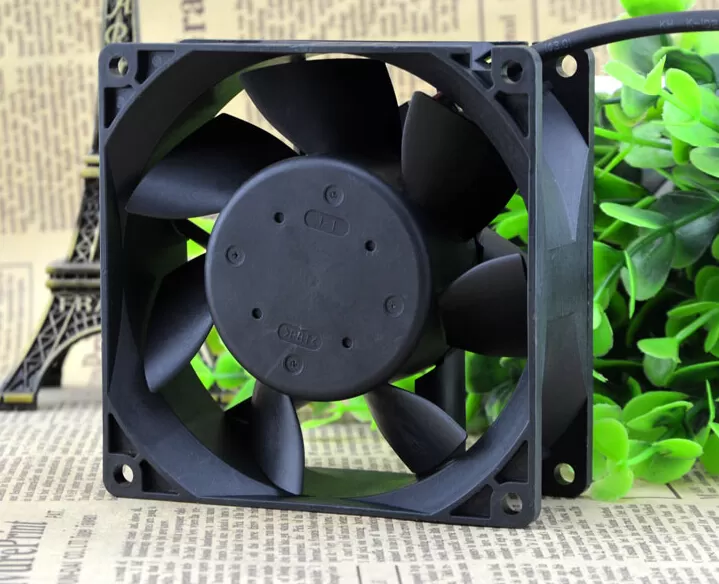

NMB 24VDC 92*92*38.4MM 7200RPM 615RL-05W-B70-E00 DC fan

$150.00 $135.00

10 in stock

SKU: 32251816604 Category: Tag: Brand:

Description

Voltage rated 24VDC

Size / scale square – 92mm x 92mm x 38.4mm long high width

The airflow of 152.5 CFM (4.32m3/min)

Static pressure of 1.200 inches of water (298.9 Pa)

The type of bearing ball

Fan type pipe shaft type

Characteristics –

Noise of 62.5 dB (A)

Power (W) 27.1W

RPM 7200 RPM

Terminal 2 lead

The weight of 0.507 pounds (229.97g)

Working temperature 14 ~ 158 degrees F (-10 ~ 70 C)

Rated current 1.13A

Voltage range 14 ~ 26.4VDC

Life expectancy at 25 C for 100000 hours

Additional information

Package

Yes

Type

Fan

Application

Computer Case

Heatsink Material

Copper

Model Number

615RL-05W-B70-E00

Bearing

Two Ball Bearing

Brand Name

NMB

Lines

2 Lines

Fan Size

9238 inch
