Description

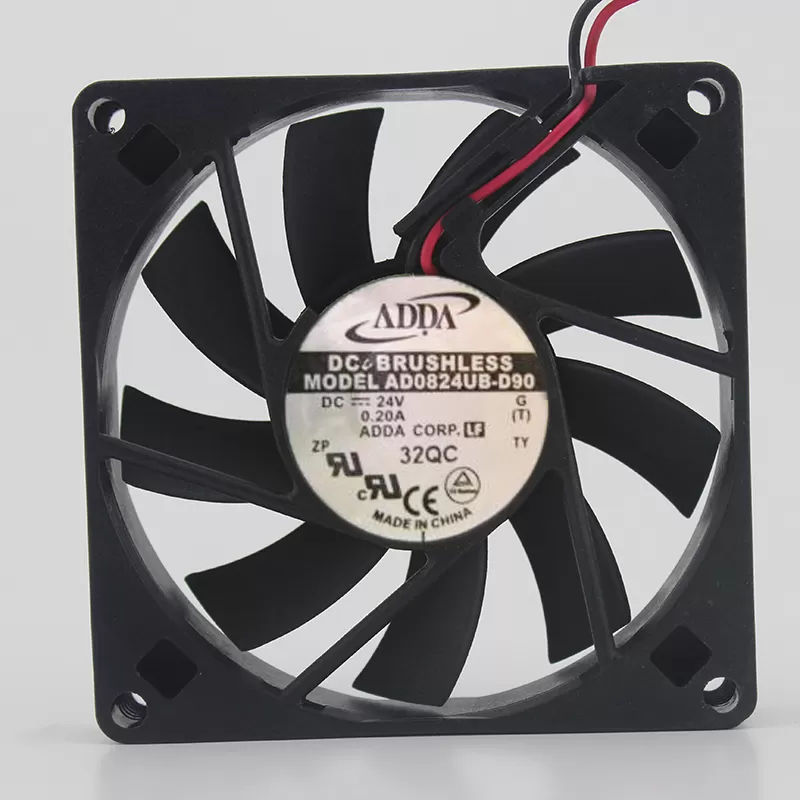

Model: AD0824UB-D90
Rated voltage: 24V
Rated current: 0.2A
Rated power: 4.8W
Fan interface: 2.0 pin
Speed monitoring: Not supported
Outlet way: red + black – line length: 15CM
Bearing Type: TWO BALL(Double ball bearing)
Two lines of output: red (positive)Black (negative)
Third line output: red (positive)Black (negative) Blue, yellow or white (signal lineSpeed or alarm)
Four-wire output: the fourth line belongs to the temperature control line(Specific usage is not clear)
Fan frame:Injection molding, PBT + 30%glassfiber+ VOGrade flame retardants:Injection molding, PBT + 30%glassfiber+ VOGrade flame retardant fan:Look at counterclockwise operating temperature from fan blade: -10Degrees to+70Celsius storage temperature: -40Degrees to+70Celsius bearings:High precision ball bearing
