Description

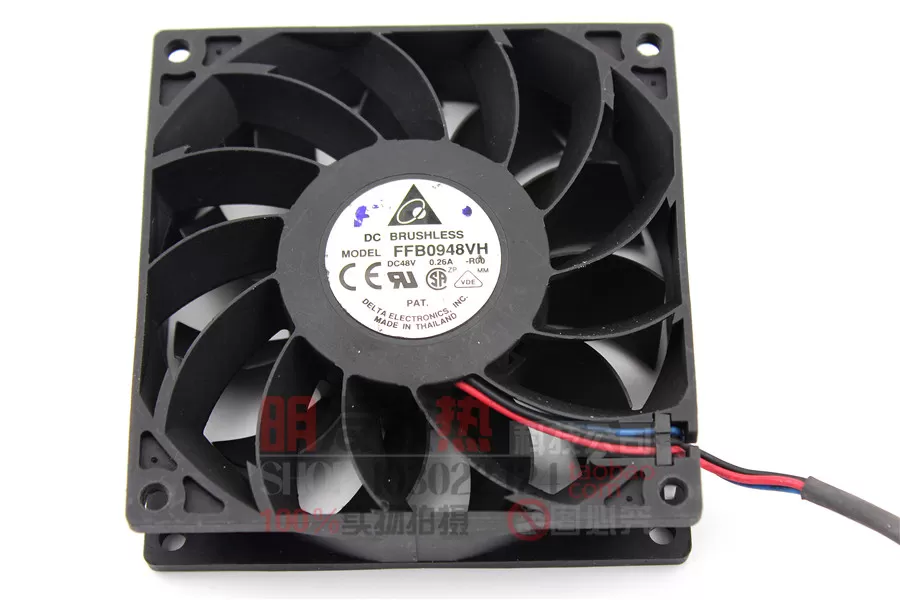

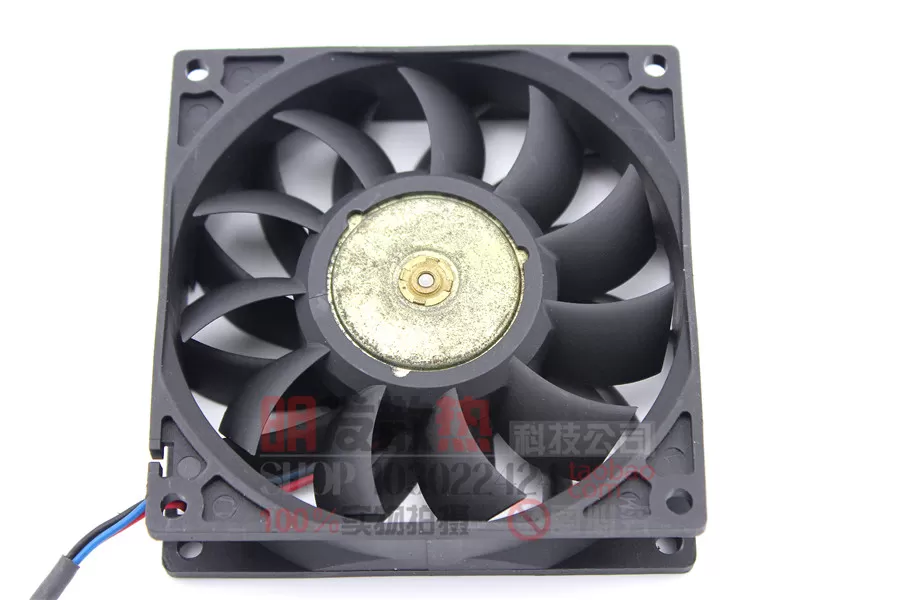

【Model】 FFB0948VH-R00
[Wire / plug] 3pin / 2510 connector / frame outside the length of 30cm
【Size】 92 * 92 * 25.4mm (frame side length * side length * thickness)
【Input voltage】 DC 48V
[Voltage range] 28.0-53.0V
【Nominal current】 0.26A
【Input current】 0.17A
【Input power】 8.16W
[Speed] 3700 RPM (turn / minute)
[Maximum air volume] 81.97 CFM (cubic feet per minute) = 2.321 m3 / min (m3 / min)
[Maximum wind pressure] 0.319 inH2O (inches / water column) = 8.11 mmH2O (mm / water column)
【Noise】 48.2 d-BA (decibels)
[Motor bearing type] Double ball bearing
