Description

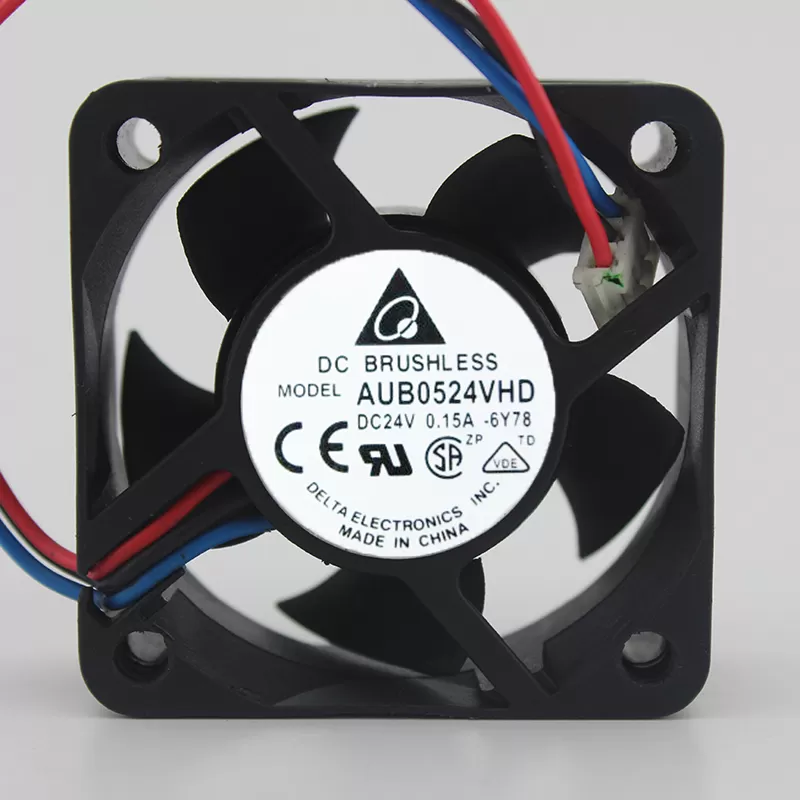

Model AUB0524VHD
Size 50 * 50 * mm
Bearing double ball bearing
Standard voltage 24V
Current 0.15A
Power: 3.6W
Speed: 5000RPM
Air volume: 11.8CFM
Thread: 2 lines
Line length:8 cm
To maintain the best continuous running time 80,000 hours Service life: 8.0000 hours (25 °, 45 ~ 85% relative humidity environment)
Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan rotation: counterclockwise from fan blade;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 degrees Celsius to +70 degrees Celsius;
Bearing: high-precision ball bearings;
Power supply range: plus or minus 15% of rated power supply;
Insulation resistance: greater than 500 megohms;
Withstand voltage: drain current 0.5mA 500V / 1 minute;
Working life: ambient temperature of 25 degrees when 80,000 hours
