Description
【Fan type】 DC axial fan
【Fan size】 120 × 120 × 38 mm

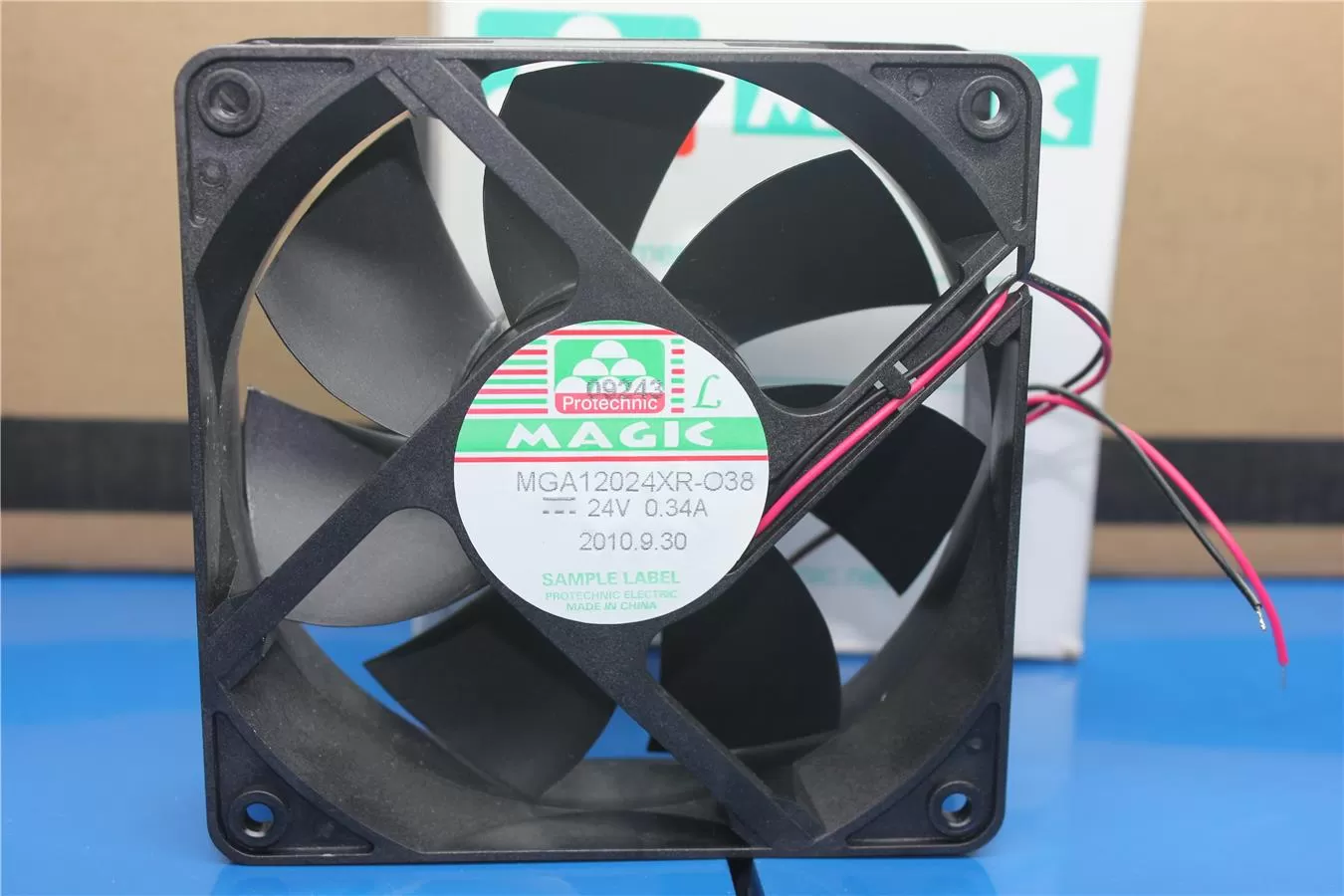

【Fan Model】 MGA12024XR-O38
[Voltage range] DC 14.0V ~ 27.6V
【Rated voltage】 DC 24V
[Nominal current] 0.34A
【Rated current】 0.34A
【Input power】 8.16W
[Rated speed] 2400 RPM
[Air volume] 112.40 CFM (cubic feet per minute) = 3.183 CMM (cubic meters / minute)
【Wind pressure】 5.61 mmAq (mm water column) = 0.221 inchAq (inches of water column)
[Noise] 41.4 dB-A (sub-chanting)
【Product net weight】 300 g
[Lead terminal] standard 2 pin positive and negative lead wire, no terminal plug, line length of about 30cm. Need to specify the specified plug, please contact customer service
[Function support] (O) Automatic restart and lock current protection
【Protection function】 stall protection, reverse protection
[Motor bearing type] Double ball bearing
【Frame and fan material】 plastic material
[Use of the environment and life] minus -10 ° to zero on the 70 °, the normal environment sustainable operation about 50,000 hours
