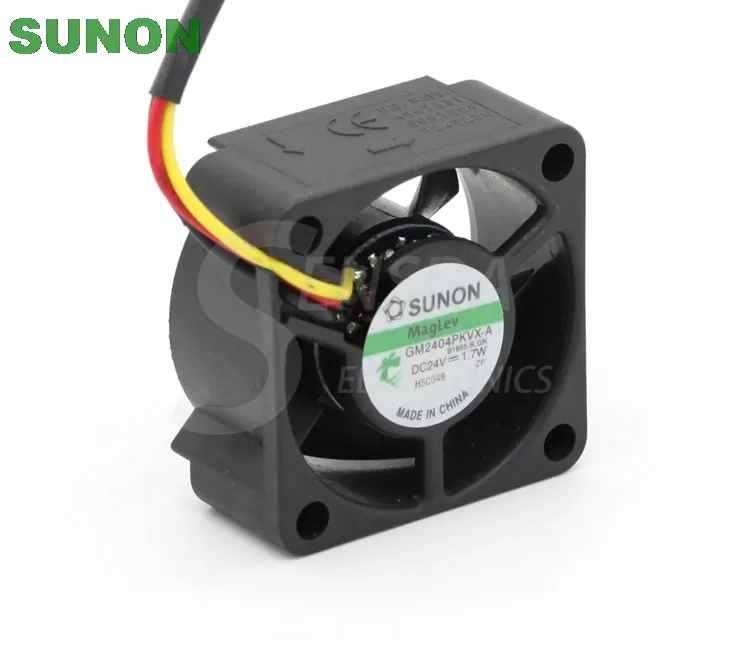

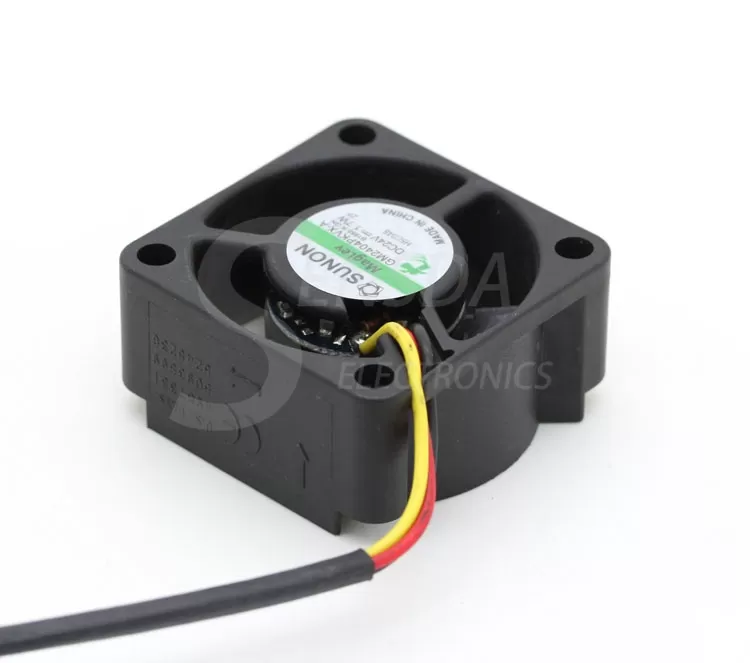

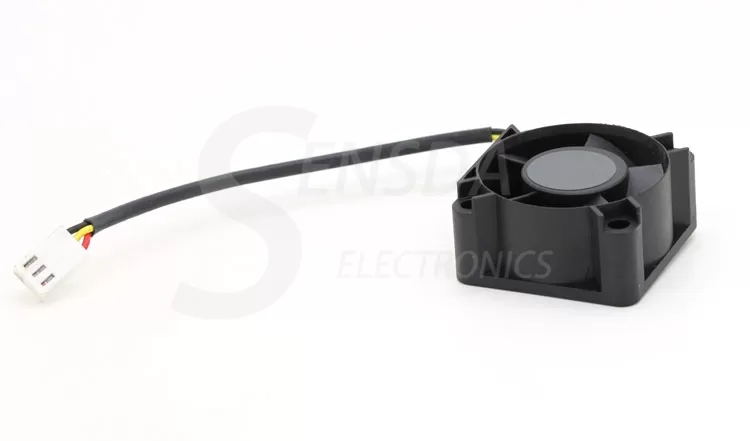

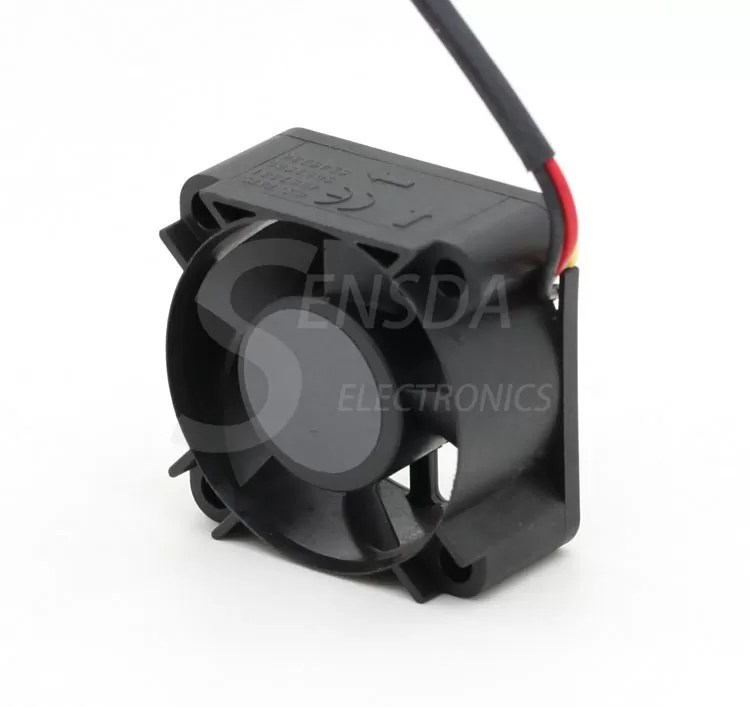

Description
Dimensions : 40 × 40 × 20mm
[ Rated voltage : DC24V
[ Voltage Range ]: DC7.0V-26.6V
[ Input Power : 1.7W
[ Rated speed : 8200 r.p.m. for
Temperature range : -10 .. 70 ° C
[Life expectancy : L10 expected life of 50,000 hours at 25 ° C when
[ Bearings]: Maglev Hypro bearing
[ Rotation]: wind discharged from the stent , the face of the rotor counterclockwise rotation
[ Wiring] : + Red – Black
[ Maximum air flow : 10.8CFM
[ Motor Protection] : Wrong level protection and stall protection locks flow
[ Minimum pressure ] : 0 .. 40 Pa
[Noise indicators ] : 32.0 dB ( A )
[Material Material : Glass fiber reinforced plastic , PBT housing, PA leaves
[ Function Description ] : electronically commutated external rotor DC fans , for the complete electronic parts
