Sale!

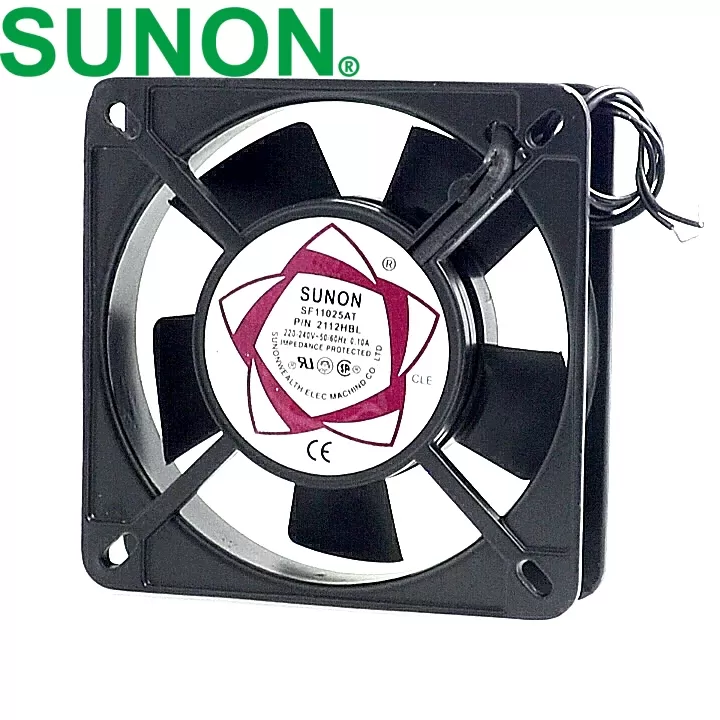

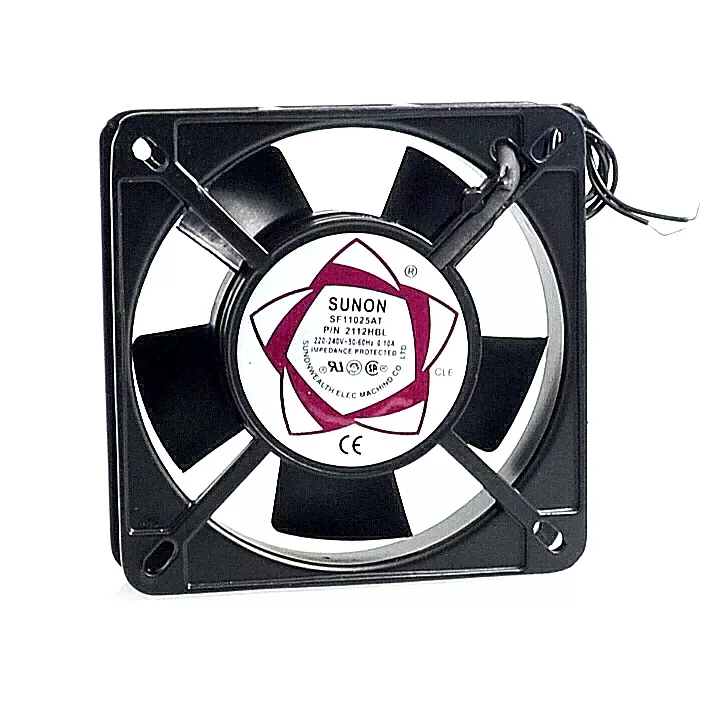

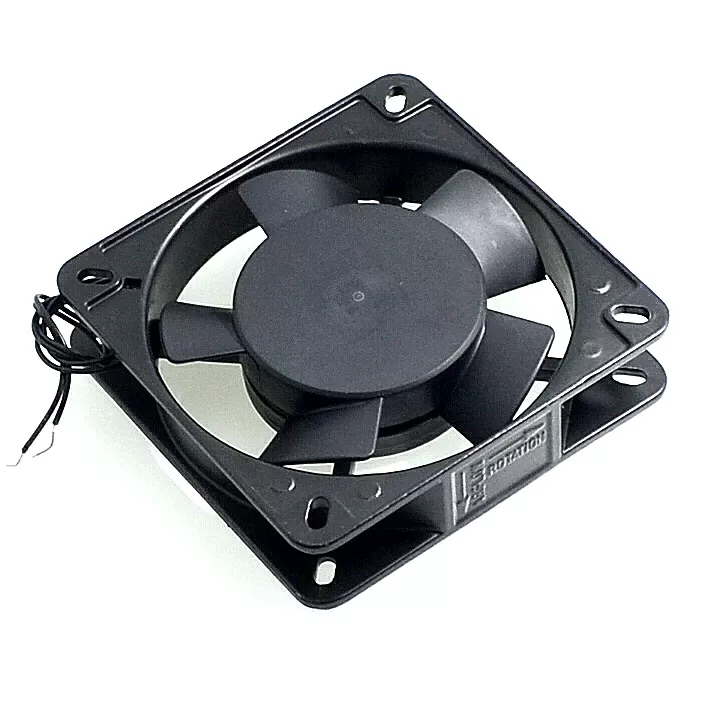

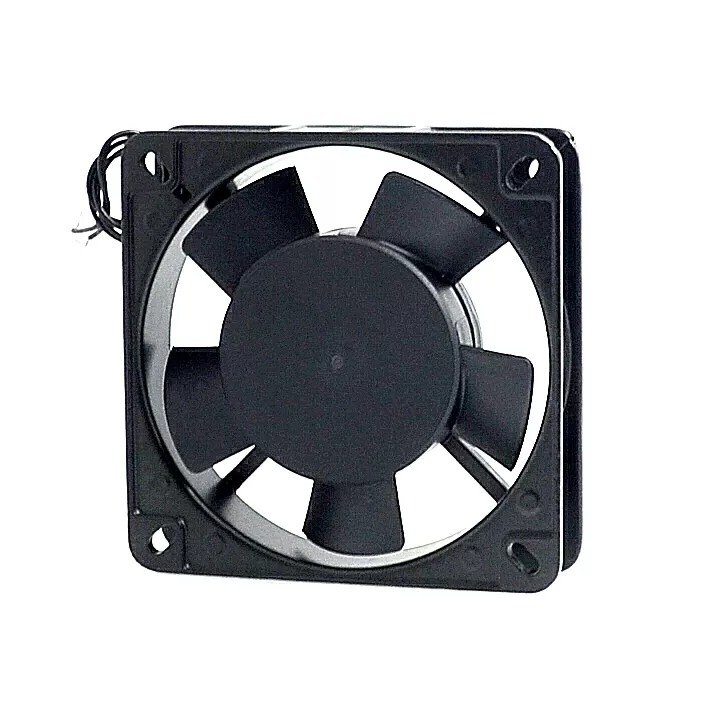

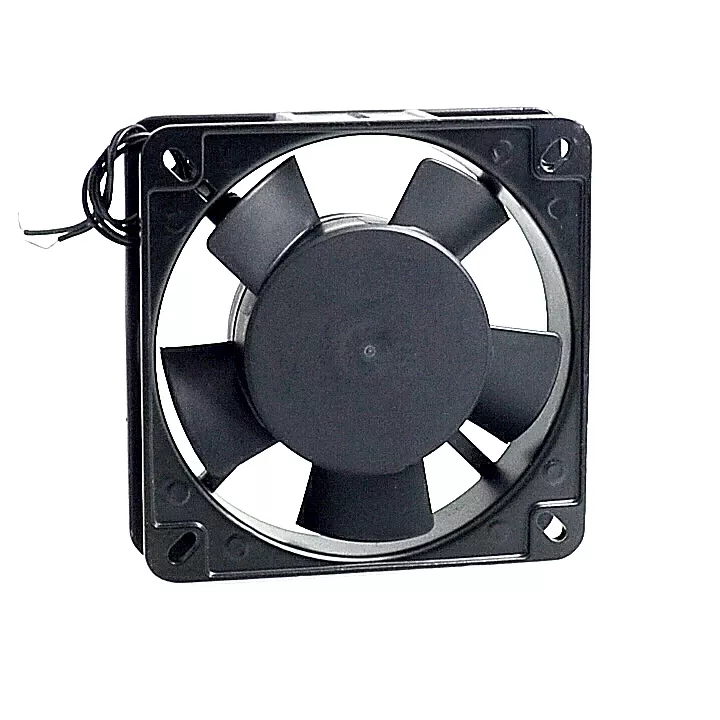

SUNON SF11025AT P/N 2112HBL 220V ball bearing fan

$10.80 $6.91

5 in stock

SKU: SF11025AT Category: Tag: Brand:

Description

Model: SF12025AT P/N 2122HBL

Bearing structure: ball

Voltage: 220 ~ 240V AC

Frequency: 50/60 (Hz) Power: 19/18W

Speed: 2200/2550 (R/min) Air volume: 1.60/1.91 (M3/min)

Noise: 39/43 (dB-A) Weight: 250 (g)

Packing: no separate packing box, 60 sets of ordinary cardboard boxes/1 full case;

Frame: black-painted aluminum alloy die-casting anti-corrosion and moisture-proof structure;

Wind blade: injection molding, PBT + 30% glass line + VO grade flame retardant;

Bearing: high precision, long life and low noise imported ball bearings;

Insulation: Enameled wire is made of Class B insulation and has a temperature resistance of 120 degrees Celsius;

Insulation resistance: 500 megaohms or more;

Withstand voltage: leakage current 0.5mA. Withstand voltage 1500V / 1 minute;

Operating voltage: 220V (voltage range: 185V ~ 245V)

Long service life, long working hours for 24 hours

SUNON SF11025AT P/N 2112HBL 220V ball bearing fan
SUNON SF11025AT P/N 2112HBL 220V ball bearing fan



Additional information

Application

Computer Case

Lines

2 Lines

Brand Name

SUNON

Model Number

SF11025AT P/N 2112HBL

Type

Fan

Compatible CPU

yes

Package

Yes

Heatsink Material

Copper & Aluminum
