Description

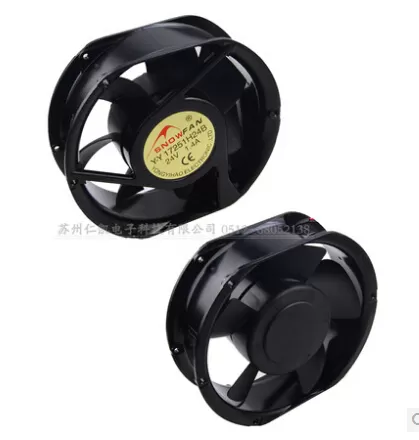

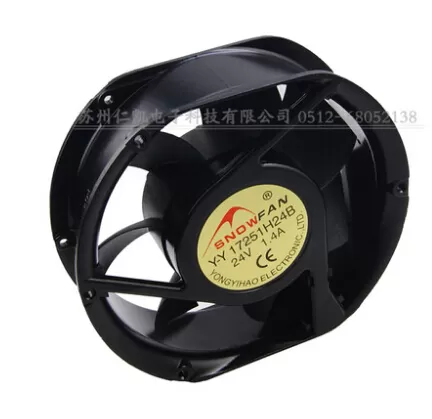

Mode1 No:YY17251H24B

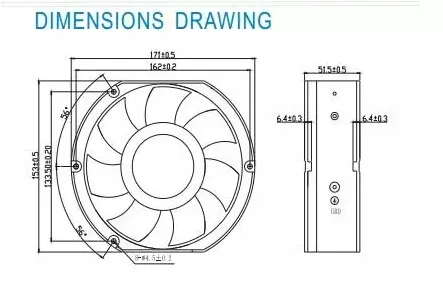

Dimension of fan:Φ172*150*51mm
Voltage:24V
Rated current:1.35A±10%
Power consumption:32.4W
Speed:3000±10%R.P.M.
Max. air flow:227CFM
Air Pressure:15.25MM-H2O
Bearing:Ball bearing
TWO Ball bearing
Expectant Life:50000 hours, 25 C
Noise:55dB-A
Plastic/material/Blad Housing Bobbin:The outer frame of aluminium material leaves PBT UL 94V-0
Dielectric Strength:5Ma Max./And the outer frame wire measurement:500VAC/min
5Ma Max./Measured between lead wire(+)and frame at 500VAC/min
Lead Wire:UL1007 20#Box perimeter length 280MM 2Line terminal red black anode cathode
